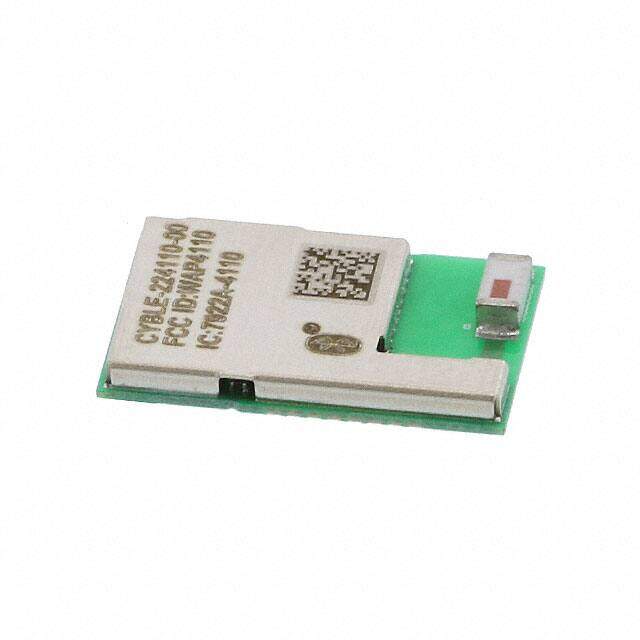

CYBLE-224110-00
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD BLUETOOTH CHIP ANT
PDF
/
Buying Options
Total Price: USD $20.74
Unit Price: USD $20.73755
≥1 USD $20.73755
≥10 USD $17.01545
≥100 USD $16.48345
≥500 USD $15.95145
≥1000 USD $15.4204
Inventory: 1254
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 9.5mm
Length 15.4mm
Height Seated (Max) 1.9mm
Technical
Current - Transmitting 20mA
Current - Receiving 21.5mA
Serial Interfaces I2C, SPI, UART
Sensitivity -95dBm
Antenna Type Integrated, Chip
RF Family/Standard Bluetooth
Power - Output 9.5dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Bluetooth v4.1
Data Rate 1Mbps
Memory Size 256kB Flash 32kB SRAM
JESD-30 Code R-XXMA-N32
Frequency 2.4GHz
Terminal Pitch 0.76mm
Supply Voltage 3.3V
Number of Functions 1
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Voltage - Supply 1.8V~5.5V
HTS Code 8473.30.11.80
ECCN Code 5A992.B
Number of Terminations 32
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Published 2015
Packaging Cut Tape (CT)
Operating Temperature -40°C~105°C
Physical
Surface Mount YES
Package / Case Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 4 Weeks
