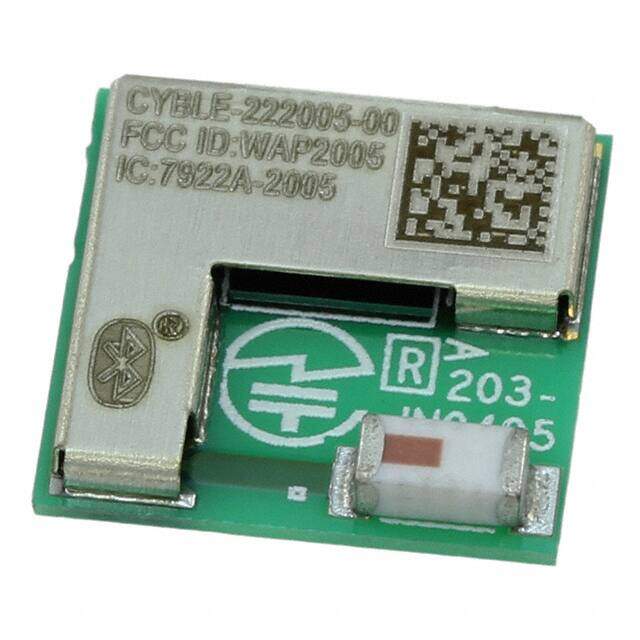

CYBLE-222005-00 image
Favorite
CYBLE-222005-00 image
Favorite
RoHS
RoHS RoHS compliant
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description RF TXRX MOD BLUETOOTH CHIP ANT
PDF
/
Buying Options
Total Price: USD $26.85
Unit Price: USD $26.84795
≥1 USD $26.84795
≥10 USD $22.02955
≥100 USD $21.3408
≥500 USD $20.653
≥1000 USD $19.96425
Inventory: 5803
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Width 10mm
Length 10mm
Height Seated (Max) 1.6mm

Technical

Current - Transmitting 15.6mA
Current - Receiving 16.4mA
Serial Interfaces I2C, SPI, UART
Sensitivity -91dBm
Antenna Type Integrated, Chip
RF Family/Standard Bluetooth
Power - Output 3dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Bluetooth v4.1
Data Rate 1Mbps
Memory Size 256kB Flash 32kB SRAM
JESD-30 Code S-XXMA-N22
Frequency 2.4GHz
Supply Voltage 3.3V
Number of Functions 1
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Voltage - Supply 1.8V~5.5V
HTS Code 8473.30.11.80
ECCN Code 5A992.B
Number of Terminations 22
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Series EZ-BLE? PRoC?
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Surface Mount YES
Package / Case Module
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
