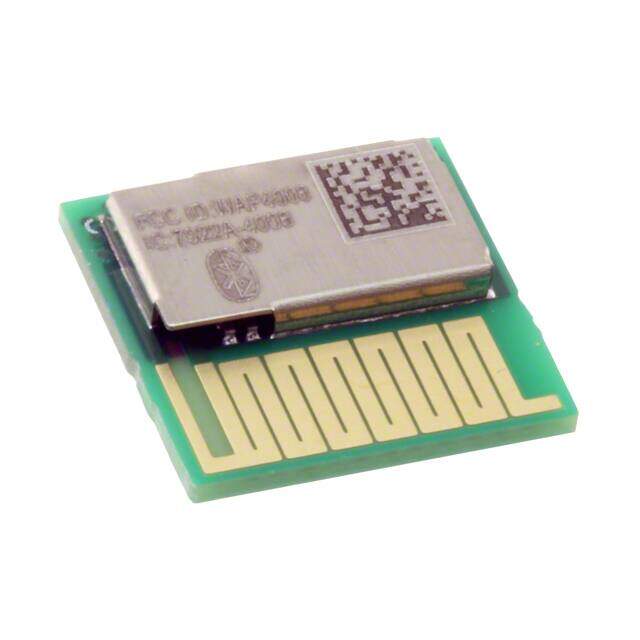

CYBLE-214009-00
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD BLUETOOTH TRACE ANT
PDF
/
Buying Options
Total Price: USD $17.45
Unit Price: USD $17.4515
≥1 USD $17.4515
≥10 USD $14.31935
≥100 USD $13.8719
≥500 USD $13.42445
≥1000 USD $12.977
Inventory: 3565
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 32
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2015
Series EZ-BLE? PSoC?
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 32
ECCN Code 3A991.A.2
HTS Code 8473.30.11.80
Voltage - Supply 1.7V~5.5V
Terminal Position UNSPECIFIED
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 0.66mm
Frequency 2.4GHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Operating Supply Voltage 5.5V
Data Rate 1Mbps
Protocol Bluetooth v4.1
Telecom IC Type TELECOM CIRCUIT
Power - Output 3dBm
RF Family/Standard Bluetooth
Antenna Type Integrated, Trace
Sensitivity -91dBm
Serial Interfaces I2C, SPI, UART
Current - Receiving 16.4mA
Current - Transmitting 15.6mA
Dimensions
Height Seated (Max) 1.8mm
Length 11mm
Width 11mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
