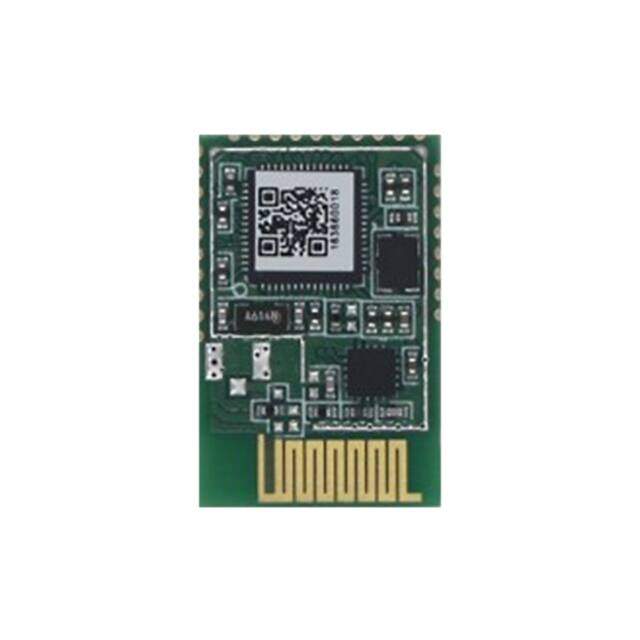

CYBLE-202013-11
RoHS
RoHS compliant
RoHS compliantPackage 30-SMD Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD BLUETOOTH 4.2 RF PIN
PDF
/
Buying Options
Total Price: USD $13.59
Unit Price: USD $13.5872
≥1 USD $13.5872
≥10 USD $12.2936
≥100 USD $11.323136
≥500 USD $10.35276
≥1000 USD $9.705696
Inventory: 89
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type Surface Mount
Package / Case 30-SMD Module
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2017
Series EZ-BLE? PRoC?
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 30
ECCN Code 5A992.B
HTS Code 8473.30.11.80
Voltage - Supply 1.8V~4.5V
Terminal Position UNSPECIFIED
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 1.27mm
Frequency 2.4GHz~2.48GHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XXMA-N30
Memory Size 256kB Flash 32kB SRAM
Data Rate 1Mbps
Protocol Bluetooth v4.2
Telecom IC Type TELECOM CIRCUIT
Power - Output 7.5dBm
RF Family/Standard Bluetooth
Antenna Type Integrated, Trace
Sensitivity -93dBm
Serial Interfaces I2C, I2S, SPI, UART
Current - Receiving 16.4mA
Current - Transmitting 15.6mA
Dimensions
Height Seated (Max) 2mm
Length 23mm
Width 15mm
Compliance
RoHS Status ROHS3 Compliant
