ZMXM-401-1-B
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
Zigbee / 802.15.4 Modules Matrix 100mW Module PCB Trace Antenna
PDF
/
Inventory: 5994
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 24
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series Matrix
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Supply 2.1V~3.6V
Frequency 2.4GHz
Operating Supply Voltage 3.6V
Number of Channels 16
Interface UART
Memory Size 128kB Flash 8kB RAM
Data Rate 250kbps
Utilized IC / Part CC2430
Protocol Zigbee?
Power - Output 20dBm
RF Family/Standard 802.15.4
Antenna Type Integrated, Trace
Sensitivity -92dBm
Serial Interfaces UART
Current - Receiving 33mA
Current - Transmitting 50mA~130mA
Sensitivity (dBm) -89 dBm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free

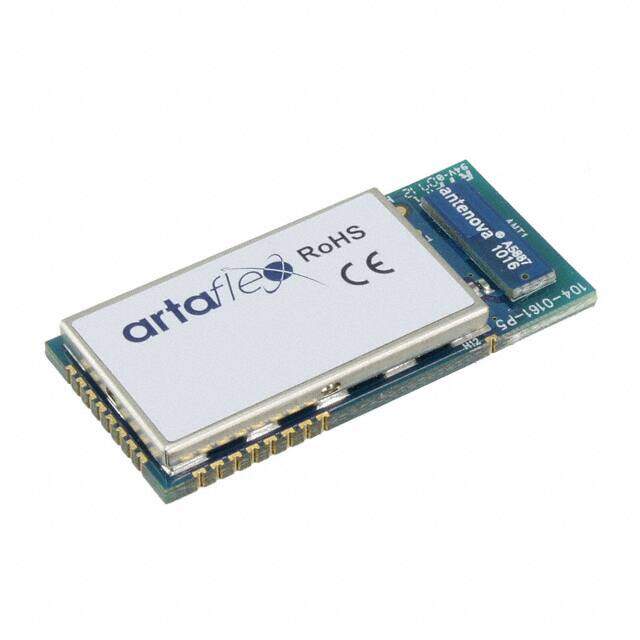

Alternative Model
