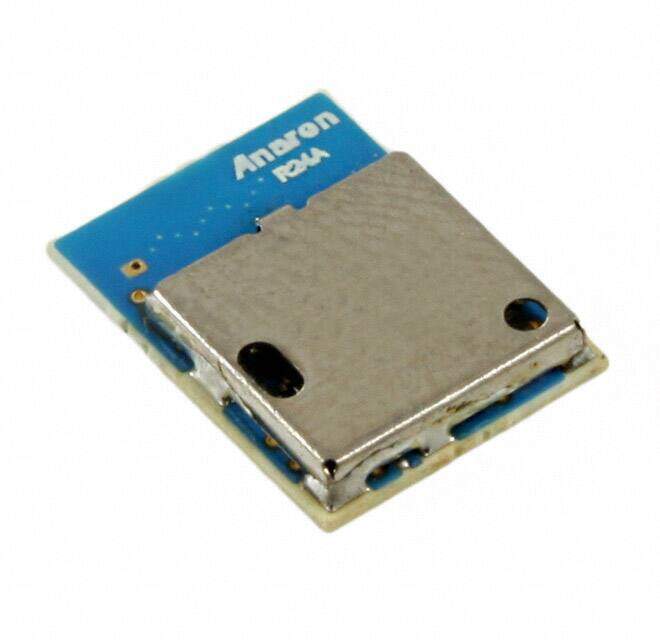

A2500R24A00GR
RoHS
RoHS compliant
RoHS compliantPackage 24-SMD Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF Modules 2400MHz Radio Only Internal Antenna
PDF
/
Inventory: 3537
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 24-SMD Module
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2010
Series AIR?
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 24
HTS Code 8542.39.00.01
Voltage - Supply 1.8V~3.6V
Terminal Position BOTTOM
Terminal Form BUTT
Number of Functions 1
Depth 9mm
Frequency 2.4GHz
Pin Count 24
JESD-30 Code R-XBCC-B24
Operating Supply Voltage 3.6V
Data Rate 500kbps
Utilized IC / Part BCM43362
Telecom IC Type TELECOM CIRCUIT
Power - Output 1dBm
RF Family/Standard General ISM > 1GHZ
Antenna Type Integrated, Trace
Serial Interfaces SPI
Current - Receiving 16mA
Sensitivity (dBm) -104 dBm
Dimensions
Length 12mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
