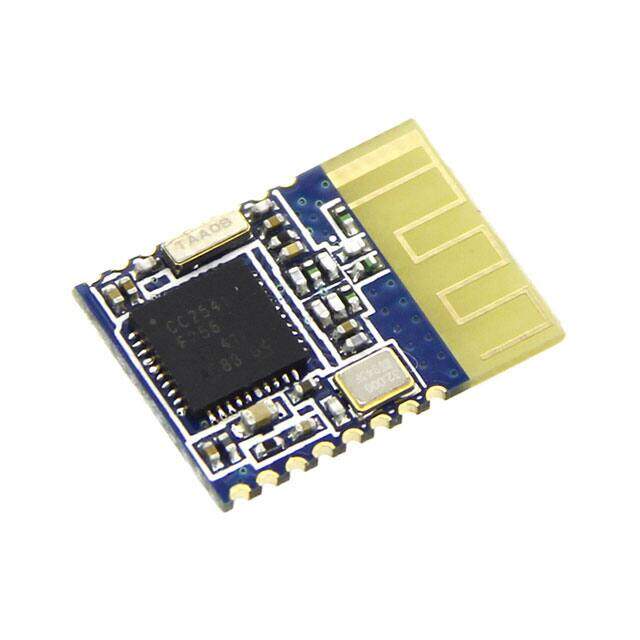

ABBTM-2.4GHZ-51
RoHS
RoHS compliant
RoHS compliantPackage 54-SMD Module, 47 Leads
Category RF/IF and RFID / RF Transceiver Modules
Description
Bluetooth / 802.15.1 Modules 2.4GHz Ext. Ant. 16MB Flash
PDF
/
Buying Options
Total Price: USD $45.54
Unit Price: USD $45.541875
≥1 USD $45.541875
≥200 USD $17.62437
≥500 USD $17.004681
≥1000 USD $16.698775
Inventory: 3030
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 54-SMD Module, 47 Leads
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 47
HTS Code 8542.39.00.01
Voltage - Supply 1.5V 3.3V
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 1.1mm
Frequency 2.4GHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XQMA-N47
Memory Size 16MB Flash
Utilized IC / Part CC2540
Protocol Bluetooth v2.1, Class 2
Telecom IC Type TELECOM CIRCUIT
Power - Output 4dBm
RF Family/Standard Bluetooth
Antenna Type Antenna Not Included
Serial Interfaces UART
Sensitivity (dBm) -93 dBm
Dimensions
Height Seated (Max) 2.2mm
Length 20mm
Width 13.4mm
Compliance
RoHS Status RoHS Compliant
