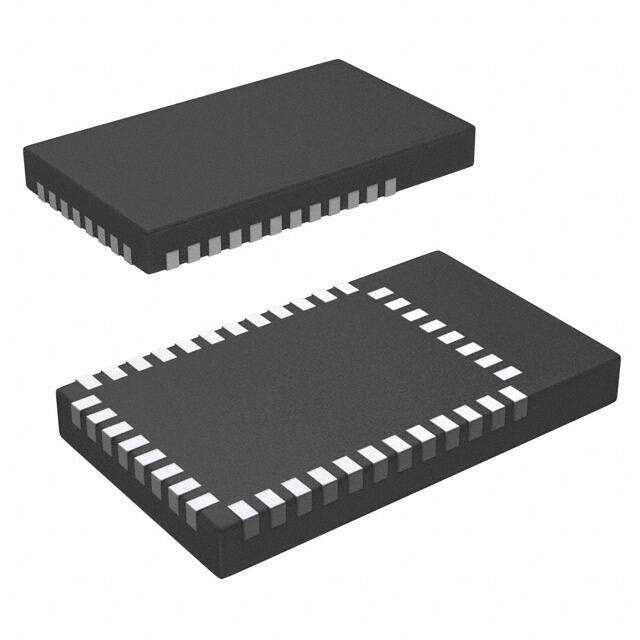

LMX9838SB/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 70-LGA
Category RF/IF and RFID / RF Transceiver ICs
Description
IC RF TXRX+MCU BLUETOOTH 70LGA
PDF
/
Buying Options
Total Price: USD $106.7
Unit Price: USD $106.70305
≥1 USD $106.70305
≥10 USD $103.2612
≥100 USD $99.81935
≥500 USD $89.49285
Inventory: 256
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 10mm
Length 17mm
Height Seated (Max) 2.1mm
Technical
GPIO 3
Sensitivity (dBm) -80 dBm
Current - Transmitting 65mA Max
Current - Receiving 65mA Max
Serial Interfaces UART
Data Rate (Max) 704kbps
RF Family/Standard Bluetooth
Power - Output 0dBm
Protocol Bluetooth v2.0
Max Supply Current 65mA
Memory Size 16kB RAM
Interface Serial, UART
Operating Supply Voltage 3.3V
Pin Count 70
Base Part Number LMX9838
Frequency 2.4GHz
Terminal Pitch 1mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 250
Terminal Position BOTTOM
Voltage - Supply 2.5V~3.6V
Subcategory Other Telecom ICs
Type TxRx + MCU
Number of Terminations 70
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Discontinued
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 70
Package / Case 70-LGA
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
