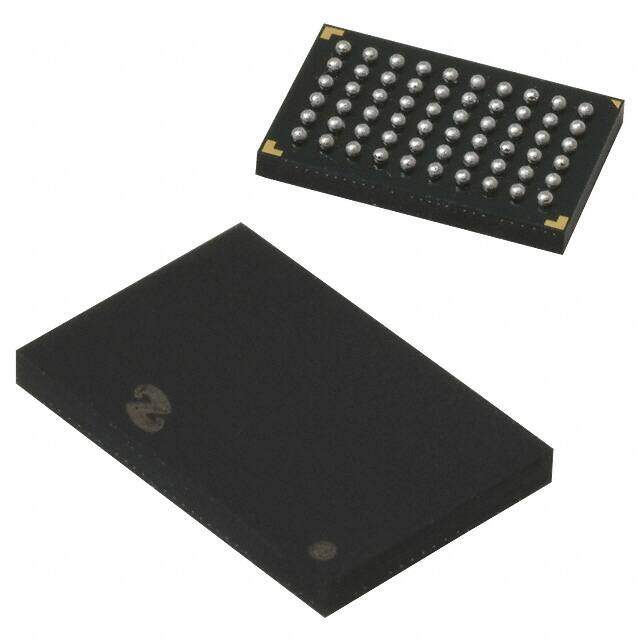

LMX9830SM/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 60-LFBGA
Category RF/IF and RFID / RF Transceiver ICs
Description
IC RF TXRX+MCU BLUETOOTH 60NFBGA
PDF
/
Buying Options
Total Price: USD $25.01
Unit Price: USD $25.01093
≥1 USD $25.01093
≥10 USD $23.59522
≥100 USD $22.25964
≥500 USD $20.99966
≥1000 USD $19.811
Inventory: 1403
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 1.2mm
Width 6mm
Length 9mm
Height 1.3mm
Technical
GPIO 3
Sensitivity (dBm) -80 dBm
Modulation MSK
Current - Transmitting 65mA Max
Current - Receiving 65mA Max
Serial Interfaces JTAG, SPI, UART
Data Rate (Max) 704kbps
RF Family/Standard Bluetooth
Power - Output 0dBm
Protocol Bluetooth v2.0
Max Supply Current 65mA
Memory Size 16kB RAM
Interface I2C, SPI, UART
Pin Count 60
Base Part Number LMX9830
Frequency 2.4GHz
Terminal Pitch 0.8mm
Supply Voltage 2.75V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 2.5V~3.6V
Technology CMOS
Subcategory Other Telecom ICs
HTS Code 8517.62.00.50
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type TxRx + MCU
ECCN Code 5A992.C
Number of Terminations 60
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Number of Pins 60
Package / Case 60-LFBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 6 Weeks
Alternative Model
