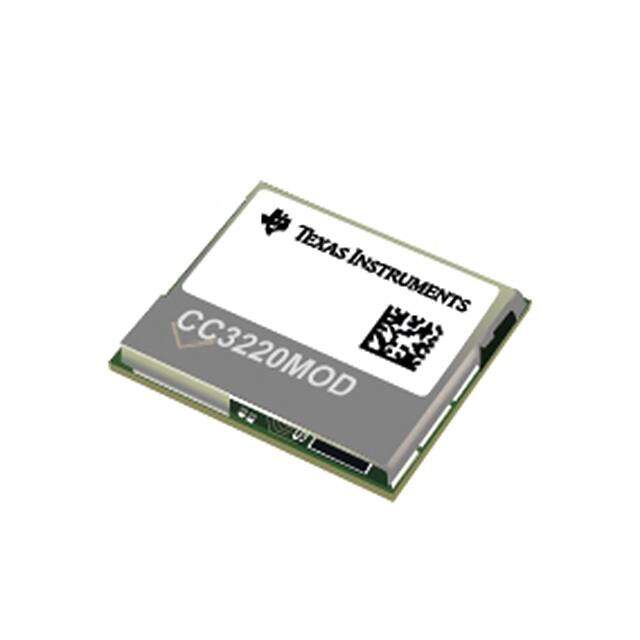

CC3220MODSM2MOBR
RoHS
RoHS compliant
RoHS compliantPackage 63-SMD Module
Category RF/IF and RFID / RF Transceiver ICs
Description
IC RF TXRX+MCU WIFI 63SMD
PDF
/
Buying Options
Total Price: USD $10.56
Unit Price: USD $10.56
≥1 USD $10.56
≥10 USD $9.67912
≥100 USD $8.799296
≥500 USD $7.919208
≥1000 USD $7.259261
Inventory: 264
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Thickness 1.5mm
Width 17.5mm
Length 20.5mm
Height 2.45mm
Technical
Number of DMA Channels 2
GPIO 21
Number of GPIO 25
ROM Programmability FLASH
Modulation DSSS, OFDM
Number of Timers 4
Number of Serial I/Os 2
Current - Transmitting 223mA
Current - Receiving 59mA
Serial Interfaces I2C, SPI, UART
Sensitivity -95dBm
RAM (words) 256
RF Family/Standard WiFi
Integrated Cache NO
Power - Output 17dBm
Format FIXED-POINT
Low Power Mode YES
Boundary Scan YES
CPU Family CORTEX-M4
ROM (words) 1024000
Protocol 802.11b/g/n
DAC Channels NO
PWM Channels NO
DMA Channels NO
Has ADC YES
Speed 2400 MHz
Number of I/O 25
Memory Size 256kB RAM
Base Part Number CC3220
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 2.4GHz
Terminal Pitch 1.27mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Voltage - Supply 2.3V~3.6V
Technology CMOS
Terminal Finish Gold (Au)
Type TxRx + MCU
ECCN Code 5A992C
Number of Terminations 63
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series SimpleLink?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 63
Surface Mount YES
Package / Case 63-SMD Module
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 12 Weeks
