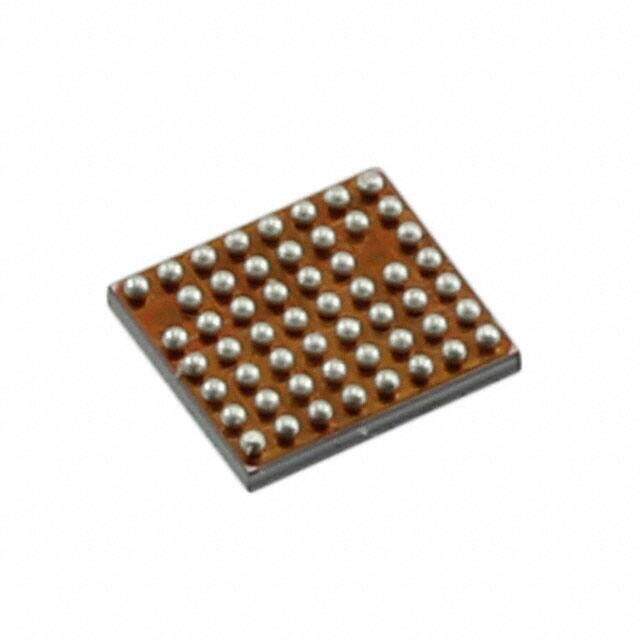

CC2560ANYFVT image
Favorite
CC2560ANYFVT image
Favorite

CC2560ANYFVT

Texas Instruments
RoHS
RoHS RoHS compliant
Package 54-BGA, DSBGA
Category RF/IF and RFID / RF Transceiver ICs
Description Tape & Reel (TR) CC2560 UART Bluetooth v4.0 IC RF TxRx Only -95dBm 4.8V 12dBm 2.4GHz
PDF
/
Buying Options
Total Price: USD $8.96
Unit Price: USD $8.964481
≥1 USD $8.964481
≥250 USD $3.577653
≥500 USD $3.458179
≥1000 USD $3.399098
Inventory: 1421
Minimum: 1
-
+

Technical Details

Physical

Mounting Type Surface Mount
Package / Case 54-BGA, DSBGA

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Type TxRx Only
Voltage - Supply 2.2V~4.8V
Frequency 2.4GHz
Base Part Number CC2560
Operating Supply Voltage 4.8V
Interface UART
Protocol Bluetooth v4.0
Power - Output 12dBm
RF Family/Standard Bluetooth
Data Rate (Max) 4Mbps
Serial Interfaces I2S, UART
Current - Receiving 40.5mA~41.2mA
Current - Transmitting 40.5mA~41.2mA
Modulation GFSK, GMSK
Sensitivity (dBm) -95 dBm

Compliance

RoHS Status ROHS3 Compliant
