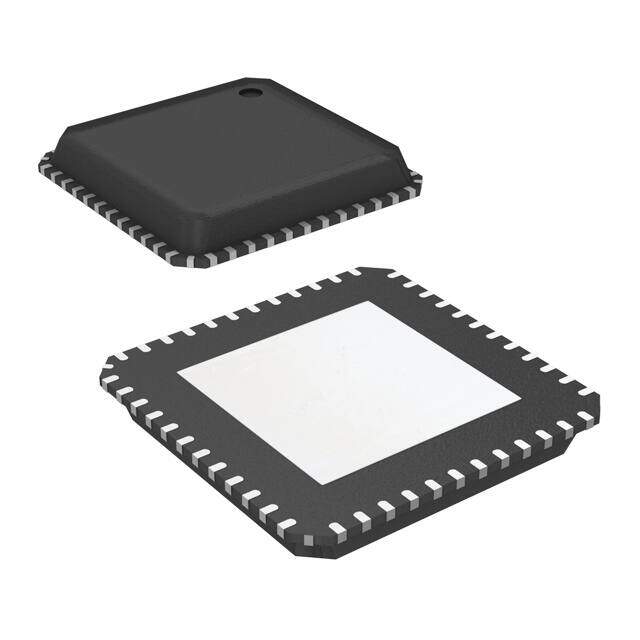

CC2431ZRTCG3 image
Favorite
CC2431ZRTCG3 image
Favorite

CC2431ZRTCG3

Texas Instruments
RoHS
RoHS RoHS compliant
Package 48-VFQFN Exposed Pad
Category RF/IF and RFID / RF Transceiver ICs
Description IC RF TXRX+MCU 802.15.4 48-VFQFN
PDF
/
Inventory: 1646
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Length 7mm

Technical

Current - Receiving 27mA
Serial Interfaces SPI, USART
RF Family/Standard 802.15.4
Core Architecture 8051
Protocol Zigbee?
Number of Timers/Counters 4
Data Bus Width 8b
Data Rate 250 kbps
Memory Type FLASH
RAM Size 8kB
Number of I/O 21
Memory Size 128kB Flash 8kB SRAM
Pin Count 48
Base Part Number CC2431
Frequency 2.4GHz
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Voltage - Supply 2V~3.6V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type TxRx + MCU
Number of Terminations 48
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e4
Packaging Tray

Physical

Number of Pins 48
Package / Case 48-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
