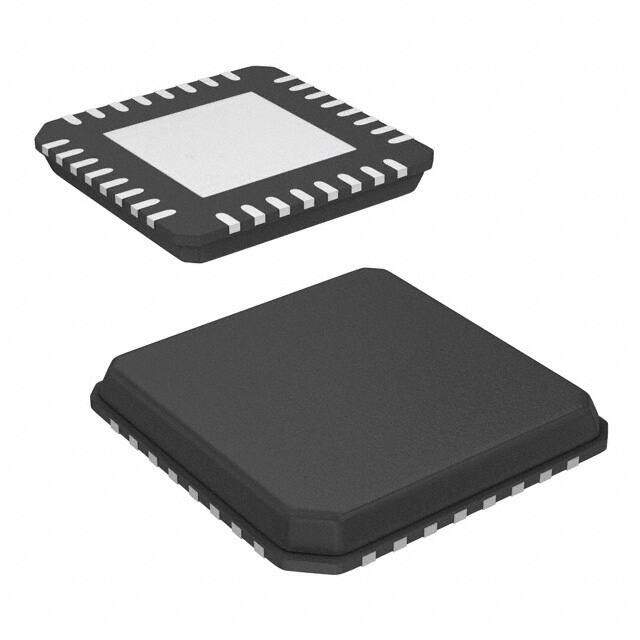

CC1020RSS
RoHS
RoHS compliant
RoHS compliantPackage 32-VQFN Exposed Pad
Category RF/IF and RFID / RF Transceiver ICs
Description
Tube CC1020 SPI UART Surface Mount IC RF TxRx Only 7.1mm -118dBm 3V 10dBm
PDF
/
Buying Options
Total Price: USD $4.03
Unit Price: USD $4.028
≥1 USD $4.028
≥10 USD $3.30505
≥100 USD $3.2015
≥500 USD $3.09795
≥1000 USD $2.99535
Inventory: 41604
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 7mm
Length 7.1mm
Technical
Sensitivity (dBm) -118 dBm
Modulation FSK, GFSK, OOK
Number of Receivers 1
Current - Transmitting 12.3mA~27.1mA
Current - Receiving 19.9mA
Serial Interfaces SPI, UART
Data Rate (Max) 153.6kBaud
RF Family/Standard General ISM < 1GHz
Power - Output 10dBm
Interface SPI, UART
Power Supplies 3V
Operating Supply Voltage 3V
Pin Count 32
Base Part Number CC1020
Frequency 402MHz~470MHz 804MHz~960MHz
Depth 7.1mm
Terminal Pitch 0.65mm
Supply Voltage 3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Voltage - Supply 2.3V~3.6V
Technology CMOS
Subcategory Other Telecom ICs
Type TxRx Only
Number of Terminations 32
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e4
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Number of Pins 32
Package / Case 32-VQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
