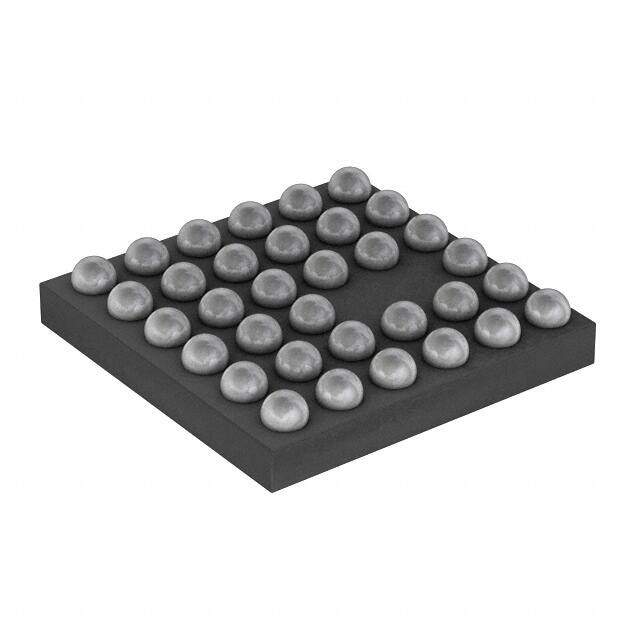

BLUENRGCSP
RoHS
RoHS compliant
RoHS compliantPackage 34-XFBGA, WLCSP
Category RF/IF and RFID / RF Transceiver ICs
Description
Bluetooth Low Energy Wireless Network Processor 34-Pin WLCSP T/R
PDF
/
Buying Options
Total Price: USD $1.17
Unit Price: USD $1.17348
≥1 USD $1.17348
≥10 USD $1.130017
Inventory: 573
Minimum: 1
-
+
Technical Details
Technical
Sensitivity (dBm) -88 dBm
Modulation GFSK
Current - Transmitting 5.8mA~28.8mA
Current - Receiving 7.3mA~14.5mA
Serial Interfaces SPI
Data Rate (Max) 1Mbps
RF Family/Standard Bluetooth
Power - Output 8dBm
Core Architecture ARM
Protocol Bluetooth v4.0
Data Bus Width 32b
Memory Type FLASH
RAM Size 12kB
Memory Size 64kB Flash 12kB RAM
Operating Supply Voltage 3.6V
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 2.4GHz
Terminal Pitch 0.4mm
Supply Voltage 3V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 2V~3.6V
HTS Code 8542.39.00.01
Type TxRx + MCU
ECCN Code 5A992.C
Number of Terminations 34
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series BlueNRG
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 34
Surface Mount YES
Package / Case 34-XFBGA, WLCSP
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Length 2.66mm
Height Seated (Max) 0.5mm
