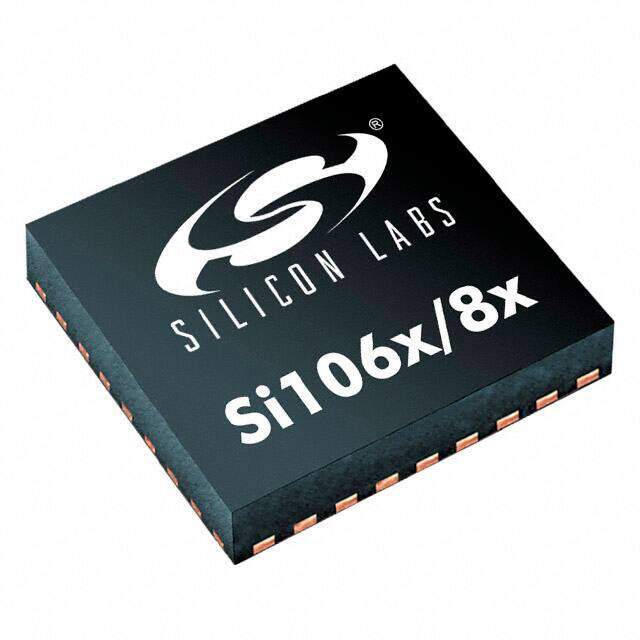

SI1085-A-GM
RoHS
/
Package 36-WFQFN Exposed Pad
Category RF/IF and RFID / RF Transceiver ICs
Description
RF Microcontrollers - MCU 8kB 768B RAM +13 dBm prgm XCVR QFN36 EZR
PDF
/
Buying Options
Total Price: USD $7.23
Unit Price: USD $7.2336
≥1 USD $7.2336
≥10 USD $6.62904
≥100 USD $6.02624
≥500 USD $5.42344
≥1000 USD $4.971498
Inventory: 455
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 6mm
Height Seated (Max) 0.8mm
Technical
GPIO 15
Sensitivity (dBm) -116 dBm
Modulation 4FSK, 4GFSK, FSK, GFSK, OOK
Current - Transmitting 18mA~29mA
Current - Receiving 10.7mA~13.7mA
Serial Interfaces I2C, SPI, UART
Number of ADC Channels 1
Data Rate (Max) 500kbps
RAM (bytes) 768
RF Family/Standard General ISM < 1GHz
Power - Output 13dBm
On Chip Program ROM Width 8
Core Architecture 8051
Number of Timers/Counters 4
PWM Channels NO
Data Bus Width 8b
DMA Channels NO
Has ADC YES
Watchdog Timer Yes
Bit Size 8
Memory Type FLASH
RAM Size 768B
Speed 25 MHz
Number of I/O 11
Memory Size 8kB Flash 768B RAM
Interface I2C, SPI, UART
Operating Supply Voltage 3.6V
Frequency 283MHz~350MHz 425MHz~525MHz 850MHz~960MHz
Terminal Pitch 0.5mm
Supply Voltage 2.4V
Terminal Form NO LEAD
Terminal Position QUAD
Voltage - Supply 1.8V~3.6V
Technology CMOS
Type TxRx + MCU
Number of Terminations 36
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Published 2000
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 92.589543mg
Number of Pins 36
Surface Mount YES
Package / Case 36-WFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
