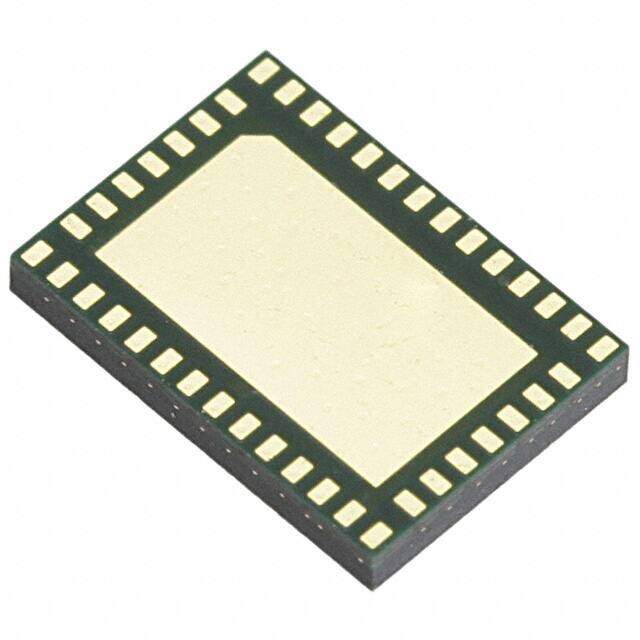

SI1010-C-GM2R
RoHS
/
Package 42-VFLGA Exposed Pad
Category RF/IF and RFID / RF Transceiver ICs
Description
IC RF TXRX+MCU ISM<1GHZ 42VFLGA
PDF
/
Buying Options
Total Price: USD $13.42
Unit Price: USD $13.42445
≥1 USD $13.42445
≥10 USD $11.01525
≥100 USD $10.6704
≥500 USD $10.3265
≥1000 USD $9.9826
Inventory: 5723
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 42-VFLGA Exposed Pad
Surface Mount YES
Number of Pins 42
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2000
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 42
Type TxRx + MCU
Subcategory Microcontrollers
Voltage - Supply 1.8V~3.6V
Terminal Position BOTTOM
Terminal Form BUTT
Supply Voltage 1.9V
Terminal Pitch 0.5mm
Frequency 240MHz~960MHz
Power Supplies 1.8/3.6V
Interface I2C, SPI, UART
Memory Size 16kB Flash 768B RAM
Number of I/O 15
Speed 25 MHz
RAM Size 768B
Memory Type FLASH
Supply Current-Max 5mA
Bit Size 8
Watchdog Timer Yes
Has ADC YES
DMA Channels NO
Data Bus Width 8b
PWM Channels YES
Number of Timers/Counters 4
Protocol EZRadioPro
Core Architecture 8051
Number of Programmable I/O 15
Power - Output 20dBm
RF Family/Standard General ISM < 1GHz
RAM (bytes) 768
Data Rate (Max) 256kbps
Serial Interfaces I2C, SPI, UART
Current - Receiving 18.5mA
Current - Transmitting 85mA
Modulation FSK, GFSK, OOK
Sensitivity (dBm) -121 dBm
Dimensions
Length 7mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
