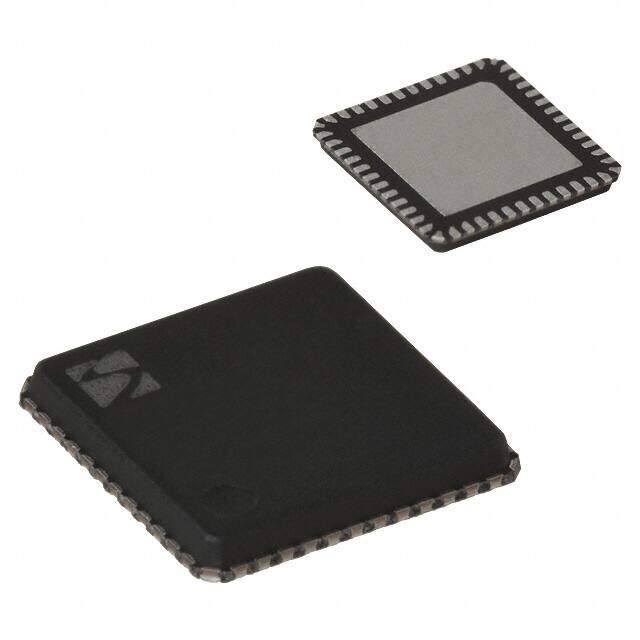

XE1203FI063TRLF
RoHS
/
Package 48-VFQFN Exposed Pad
Category RF/IF and RFID / RF Transceiver ICs
Description
IC RF TXRX ISM
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Thickness 800μm
Width 6.7mm
Length 7mm
Height Seated (Max) 0.9mm
Technical
Sensitivity (dBm) -114 dBm
Modulation 2FSK
Current - Transmitting 33mA~62mA
Serial Interfaces SPI
Data Rate (Max) 152.3kbps
Sensitivity -114dBm
RF Family/Standard General ISM < 1GHz
Power - Output 15dBm
Nominal Supply Current 14mA
Power Supplies 2.5/3.3V
Pin Count 48
Base Part Number XE120
Frequency 433MHz 868MHz 915MHz
Depth 7mm
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Number of Functions 1
Terminal Position QUAD
Voltage - Supply 2.4V~3.6V
Subcategory Other Telecom ICs
HTS Code 8542.39.00.01
Terminal Finish Matte Tin (Sn)
Type TxRx Only
Number of Terminations 48
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Series TrueRF?
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 48
Package / Case 48-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
