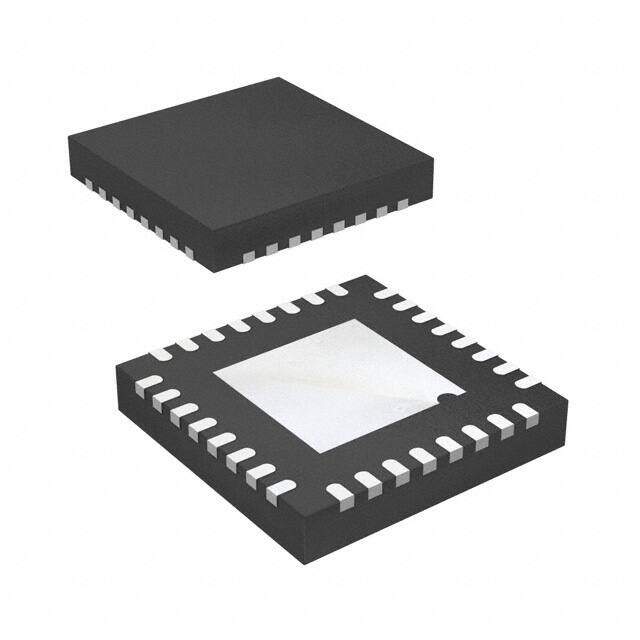

NRF905 image
Favorite
NRF905 image
Favorite
RoHS
RoHS RoHS compliant
Package 32-VFQFN Exposed Pad
Category RF/IF and RFID / RF Transceiver ICs
Description NORDIC SEMICONDUCTOR - NRF905 - IC, TRANSCEIVER, 430 928MHZ, SMD
PDF
/
Buying Options
Total Price: USD $3.5
Unit Price: USD $3.5024
≥1 USD $3.5024
≥10 USD $1.98
Inventory: 1179
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Width 5mm
Length 5mm
Height 11mm
Diameter 8.5mm

Technical

Sensitivity (dBm) -100 dBm
Modulation GFSK
Current - Transmitting 9mA~30mA
Current - Receiving 12.5mA
Serial Interfaces SPI
Data Rate (Max) 50kbps
RF Family/Standard General ISM < 1GHz
Power - Output 10dBm
Power Supplies 3V
Lead Pitch 5mm
Frequency 433MHz 868MHz 915MHz
Current Rating 10A
Depth 5mm
Supply Voltage 3V
Number of Functions 1
Shielding Unshielded
Terminal Position QUAD
Voltage - Supply 1.9V~3.6V
Subcategory Other Telecom ICs
HTS Code 8542.39.00.01
Resistance 13mOhm
Type TxRx Only
Termination SMD/SMT
Number of Terminations 32
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Tolerance 10%
Published 2004
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Number of Pins 32
Package / Case 32-VFQFN Exposed Pad
Mount Through Hole

Supply Chain

Factory Lead Time 20 Weeks
