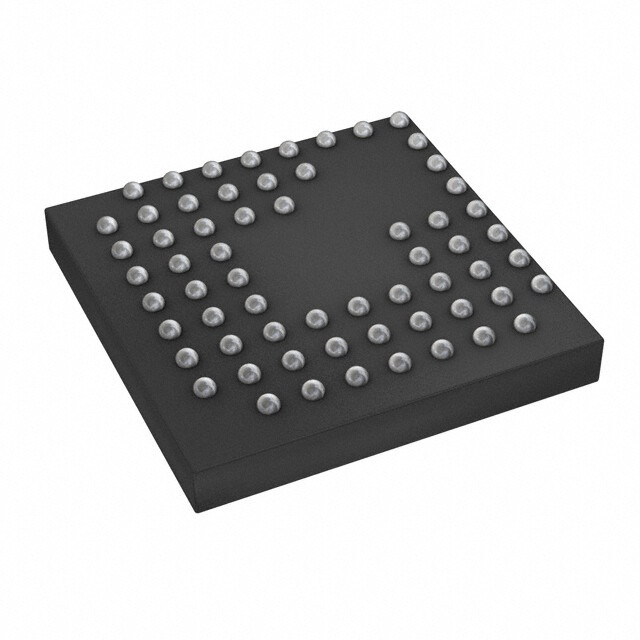

NRF51822-CFAC-R
RoHS
RoHS compliant
RoHS compliantPackage 62-UFBGA, WLCSP
Category RF/IF and RFID / RF Transceiver ICs
Description
IC RF TXRX+MCU BLUETOOTH 62WLCSP
PDF
/
Buying Options
Total Price: USD $1.16
Unit Price: USD $1.16185
≥1 USD $1.16185
≥10 USD $0.95285
≥100 USD $0.9234
≥500 USD $0.89395
≥1000 USD $0.86355
Inventory: 24910
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3.83mm
Length 3.83mm
Height Seated (Max) 0.55mm
Technical
GPIO 32
Sensitivity (dBm) -96 dBm
Modulation GFSK
Current - Transmitting 4.7mA~16mA
Current - Receiving 9.7mA~13.4mA
Serial Interfaces I2C, SPI, UART
Data Rate (Max) 2Mbps
RF Family/Standard Bluetooth, General ISM > 1GHz
Power - Output 4dBm
Protocol Bluetooth v4.0
RAM Size 32kB
Memory Size 256kB Flash 32kB RAM
Interface I2C, SPI, UART
Operating Supply Voltage 3.6V
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 2.4GHz
Terminal Pitch 0.4mm
Supply Voltage 1.8V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 1.8V~3.6V
HTS Code 8542.39.00.01
Type TxRx + MCU
Number of Terminations 62
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Published 2014
Packaging Cut Tape (CT)
Operating Temperature -25°C~75°C
Physical
Number of Pins 62
Surface Mount YES
Package / Case 62-UFBGA, WLCSP
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
