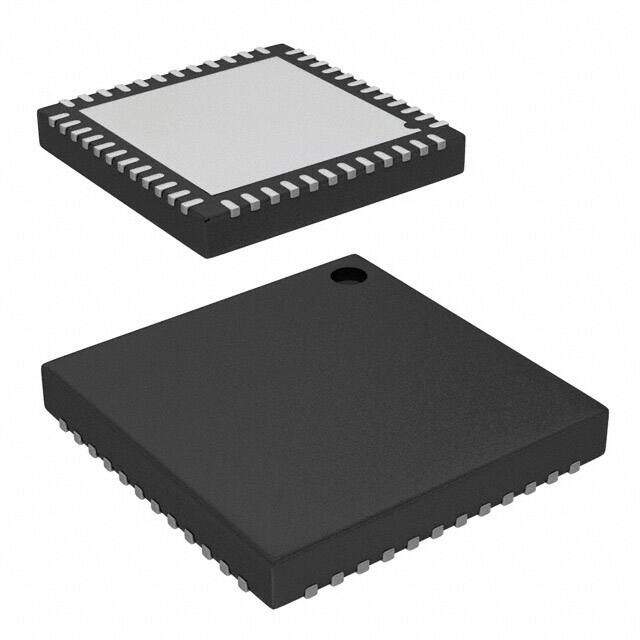

NRF51422-QFAC-T
RoHS
RoHS compliant
RoHS compliantPackage 48-VFQFN Exposed Pad
Category RF/IF and RFID / RF Transceiver ICs
Description
IC RF TXRX+MCU BLUETOOTH 48VFQFN
PDF
/
Buying Options
Total Price: USD $4.83
Unit Price: USD $4.83265
≥1 USD $4.83265
≥10 USD $3.9653
≥100 USD $3.8418
≥500 USD $3.71735
≥1000 USD $3.59385
Inventory: 191
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 6mm
Length 6mm
Height 900μm
Technical
GPIO 32
Number of GPIO 32
Sensitivity (dBm) -96 dBm
Modulation GFSK
Current - Transmitting 5.5mA~16mA
Current - Receiving 12.6mA~13.4mA
Serial Interfaces I2C, SPI, UART
Data Rate (Max) 2Mbps
Sensitivity -96dBm
RF Family/Standard Bluetooth, General ISM > 1GHz
Power - Output 4dBm
Protocol ANT, Bluetooth v4.0
Memory Size 256kB Flash 32kB RAM
Min Supply Voltage 1.8V
Max Supply Voltage 3.6V
Interface I2C, SPI, UART
Frequency 2.4GHz
Voltage - Supply 1.8V~3.6V
Min Operating Temperature -25°C
Max Operating Temperature 75°C
Type TxRx + MCU
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Published 2005
Packaging Tray
Operating Temperature -25°C~75°C
Physical
Supplier Device Package 48-QFN (6x6)
Number of Pins 48
Package / Case 48-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
