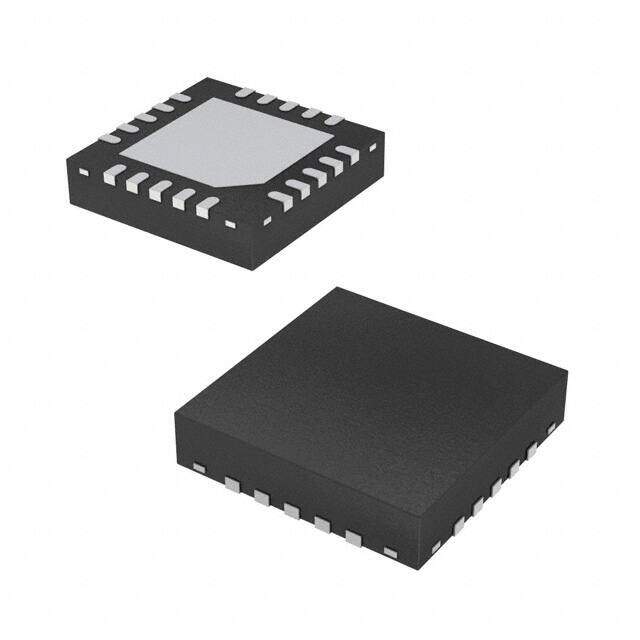

NRF24L01-REEL7 image
Favorite
NRF24L01-REEL7 image
Favorite

NRF24L01-REEL7

Nordic Semiconductor ASA
RoHS
RoHS RoHS compliant
Package 20-VFQFN Exposed Pad
Category RF/IF and RFID / RF Transceiver ICs
Description RF Transceiver 1.9-3.6V 2.4GHz XCVR ENHNCD SHCKBRST
PDF
/
Buying Options
Total Price: USD $1.4
Unit Price: USD $1.3965
≥1 USD $1.3965
≥10 USD $1.1457
≥100 USD $1.11055
≥500 USD $1.07445
≥1000 USD $1.03835
Inventory: 7001
Minimum: 1
-
+

Technical Details

Physical

Package / Case 20-VFQFN Exposed Pad
Surface Mount YES
Mounting Type Surface Mount

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2007
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 20
Type TxRx Only
Terminal Finish Matte Tin (Sn)
HTS Code 8542.39.00.01
Voltage - Supply 1.9V~3.6V
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3V
Terminal Pitch 0.5mm
Depth 4mm
Frequency 2.4GHz
Pin Count 20
JESD-30 Code S-XQCC-N20
Power - Output 0dBm
RF Family/Standard General ISM > 1GHZ
Data Rate (Max) 2Mbps
Serial Interfaces SPI
Current - Receiving 11.1mA~12.3mA
Current - Transmitting 7mA~11.3mA
Modulation GFSK
Sensitivity (dBm) -85 dBm

Dimensions

Height Seated (Max) 0.95mm
Length 4mm

Supply Chain

Factory Lead Time 20 Weeks

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
