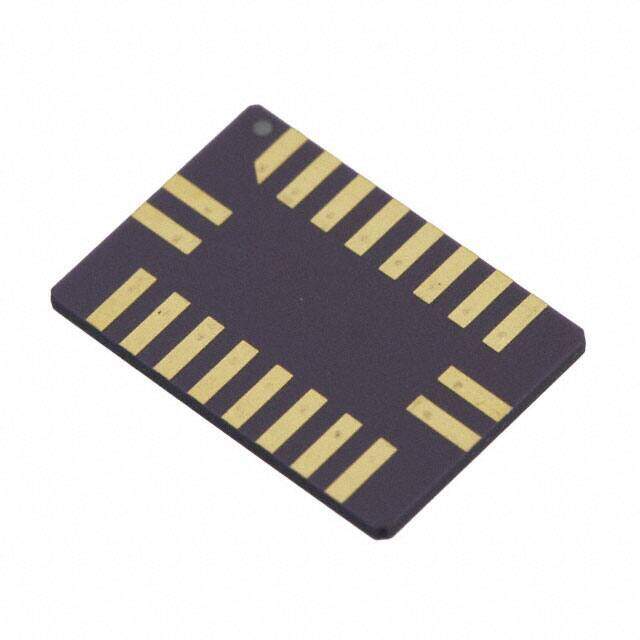

TR1001 image
Favorite
TR1001 image
Favorite
RoHS
/
Package 20-SMD Module
Category RF/IF and RFID / RF Transceiver ICs
Description RF Receiver 2G ASH Transceiver 868.35MHz 115.2kbps
PDF
/
Inventory: 6926
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Technical

Sensitivity (dBm) -106 dBm
Modulation ASK, OOK
Current - Transmitting 12mA
Current - Receiving 1.8mA~3.8mA
Data Rate (Max) 115.2kbps
Sensitivity -106dBm
RF Family/Standard General ISM < 1GHz
Power - Output 1.5dBm
Operating Supply Voltage 3.3V
Frequency 868MHz
Voltage - Supply 2.2V~3.7V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type TxRx Only
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Supplier Device Package SM-20H
Number of Pins 20
Package / Case 20-SMD Module
Mounting Type Surface Mount
