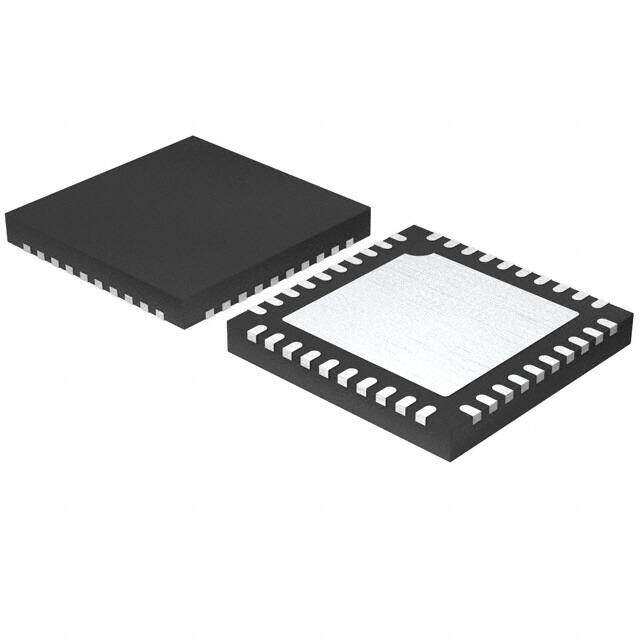

MRF24J40T-I/ML
RoHS
RoHS compliant
RoHS compliantPackage 40-VFQFN Exposed Pad
Category RF/IF and RFID / RF Transceiver ICs
Description
IC RF TXRX+MCU 802.15.4 40-VFQFN
PDF
/
Buying Options
Total Price: USD $4.83
Unit Price: USD $4.83265
≥1 USD $4.83265
≥10 USD $3.9653
≥100 USD $3.8418
≥500 USD $3.71735
≥1000 USD $3.59385
Inventory: 8281
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
GPIO 6
Sensitivity (dBm) -95 dBm
Modulation O-QPSK
Number of Receivers 1
Current - Transmitting 23mA
Current - Receiving 19mA
Serial Interfaces SPI
Data Rate (Max) 625kbps
RF Family/Standard 802.15.4
Power - Output 0dBm
Protocol Zigbee?, MiWi?
Max Supply Current 22mA
Operating Supply Voltage 3.3V
Pin Count 40
Base Part Number MRF24J40
Time@Peak Reflow Temperature-Max (s) 40
Frequency 2.4GHz
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Voltage - Supply 2.4V~3.6V
Subcategory Other Telecom ICs
Terminal Finish Matte Tin (Sn)
Type TxRx + MCU
Number of Terminations 40
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 40
Package / Case 40-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
