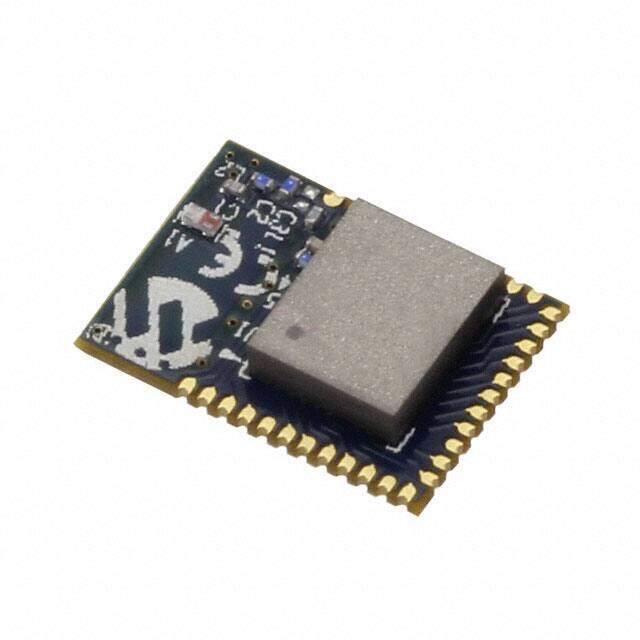

ATSAMB11-ZR210CA
RoHS
RoHS compliant
RoHS compliantPackage 39-SMD Module
Category RF/IF and RFID / RF Transceiver ICs
Description
IC RF TXRX+MCU BLUETOOTH 39SMD
PDF
/
Buying Options
Total Price: USD $74.51
Unit Price: USD $74.50565
≥1 USD $74.50565
≥10 USD $72.1772
≥100 USD $69.84875
≥500 USD $67.52125
≥1000 USD $60.5359
Inventory: 2725
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Package / Case 39-SMD Module
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2016
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 35
Type TxRx + MCU
HTS Code 8542.39.00.01
Voltage - Supply 1.8V~4.3V
Terminal Position UNSPECIFIED
Terminal Form NO LEAD
Number of Functions 1
Supply Voltage 3.6V
Terminal Pitch 0.61mm
Frequency 2.4GHz
Base Part Number ATSAMB11
JESD-30 Code R-XXMA-N35
Memory Size 256kB Flash 128kB ROM 128kB RAM
Data Rate 1 Mbps
Protocol Bluetooth v4.1
Screening Level TS 16949
Power - Output 3dBm
RF Family/Standard Bluetooth
Sensitivity -95dBm
Serial Interfaces I2C, SPI, UART
Current - Receiving 5mA
Current - Transmitting 3.2mA
GPIO 23
Dimensions
Height Seated (Max) 1.868mm
Length 10.541mm
Width 7.503mm
Compliance
RoHS Status ROHS3 Compliant
