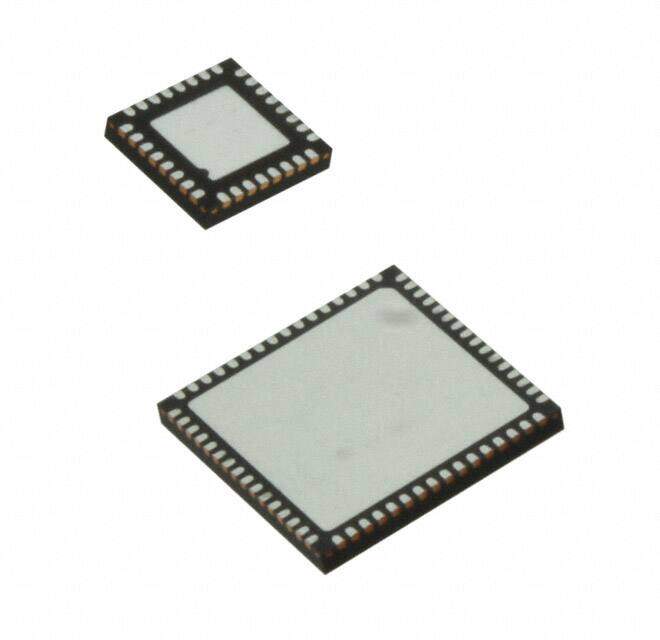

ATMEGA256RZAV-8MU image
Favorite
ATMEGA256RZAV-8MU image
Favorite

ATMEGA256RZAV-8MU

Microchip Technology
RoHS
RoHS RoHS compliant
Package 64-VFQFN Exposed Pad
Category RF/IF and RFID / RF Transceiver ICs
Description IC RF TXRX+MCU 802.15.4 64VFQFN
PDF
/
Inventory: 4564
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Technical

GPIO 54
Number of GPIO 54
Sensitivity (dBm) -101 dBm
Modulation O-QPSK
Current - Transmitting 9.5mA~16.5mA
Current - Receiving 15.5mA
Serial Interfaces I2C, JTAG, SPI, USART
Data Rate (Max) 250kbps
Sensitivity -101dBm
RF Family/Standard 802.15.4
Power - Output 3dBm
Max Frequency 8MHz
Core Architecture AVR
Protocol 6LoWPAN, Zigbee?
Number of Timers/Counters 6
Data Bus Width 8b
Access Time 8 μs
RAM Size 8kB
Number of I/O 54
Memory Size 256kB Flash 4kB EEPROM 8kB SRAM
Interface SPI
Operating Supply Voltage 5.5V
Frequency 2.4GHz
Voltage - Supply 1.8V~3.6V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type TxRx + MCU
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Number of Pins 64
Package / Case 64-VFQFN Exposed Pad
