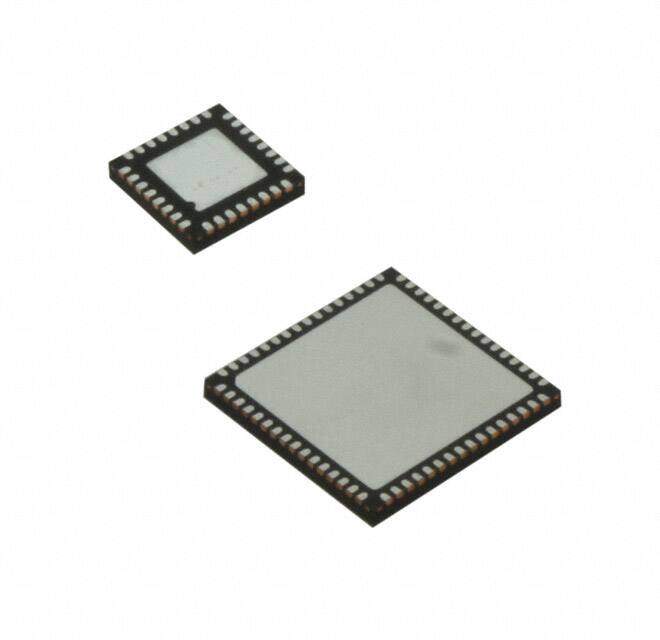

ATMEGA2561R212-MU
RoHS
RoHS compliant
RoHS compliantPackage 64-VFQFN Exposed Pad
Category RF/IF and RFID / RF Transceiver ICs
Description
IC RF TXRX+MCU 802.15.4 64QFN
PDF
/
Inventory: 7218
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
GPIO 54
Number of GPIO 54
Sensitivity (dBm) -110 dBm
Modulation DSSS, BPSK, O-QPSK
Current - Transmitting 13mA~25mA
Current - Receiving 8.7mA~9.2mA
Serial Interfaces SPI
Data Rate (Max) 1Mbps
Sensitivity -110dBm
RF Family/Standard 802.15.4, General ISM < 1GHz
Power - Output 10dBm
Core Architecture AVR
Protocol 6LoWPAN, Zigbee?
Data Bus Width 8b
Memory Type FLASH
RAM Size 8kB
Memory Size 256kB Flash 4kB EEPROM 8kB RAM
Interface I2C, SPI
Base Part Number ATMEGA2561
Frequency 769MHz~935MHz
Voltage - Supply 1.8V~3.6V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type TxRx + MCU
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Published 1997
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Supplier Device Package 64-QFN (9x9)
Package / Case 64-VFQFN Exposed Pad
