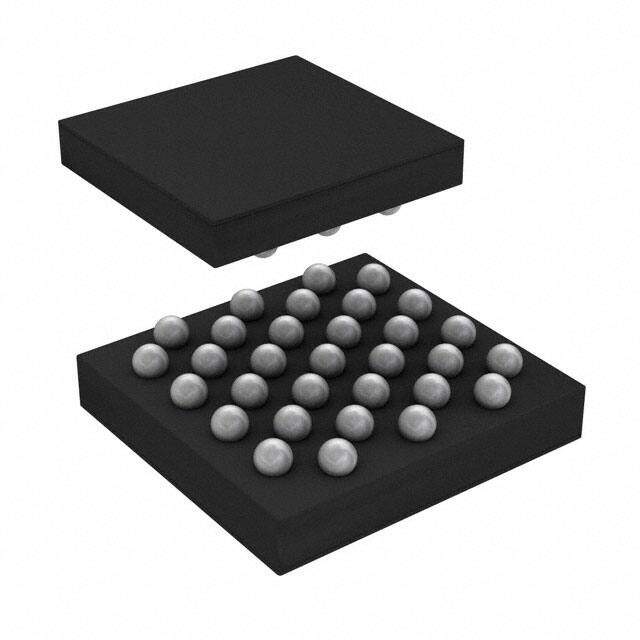

ATBTLC1000A-UU-T
RoHS
RoHS compliant
RoHS compliantPackage 31-UFBGA, WLCSP
Category RF/IF and RFID / RF Transceiver ICs
Description
SMARTCONNECT CHIPSET (BTLC1000) - SMARTCONNECT CHIPSET (BTLC1000)
PDF
/
Buying Options
Total Price: USD $27.04
Unit Price: USD $27.0389
≥1 USD $27.0389
≥10 USD $22.1863
≥100 USD $21.4928
≥500 USD $20.7993
≥1000 USD $20.1058
Inventory: 1157
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 2.142mm
Length 2.262mm
Height Seated (Max) 0.541mm
Technical
GPIO 13
Sensitivity (dBm) -96 dBm
Current - Transmitting 3mA
Current - Receiving 4mA
Serial Interfaces I2C, SPI, UART
Data Rate (Max) 3.4Mbps
RF Family/Standard Bluetooth
Power - Output 3.5dBm
Protocol Bluetooth v4.1
Memory Size 128kB ROM 128kB RAM
Interface I2C, SPI, UART
JESD-30 Code R-PBGA-B31
Base Part Number ATBTLC1000
Frequency 2.4GHz
Number of Functions 1
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 1.8V~4.3V
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type TxRx + MCU
Number of Terminations 31
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 31-UFBGA, WLCSP
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 19 Weeks
