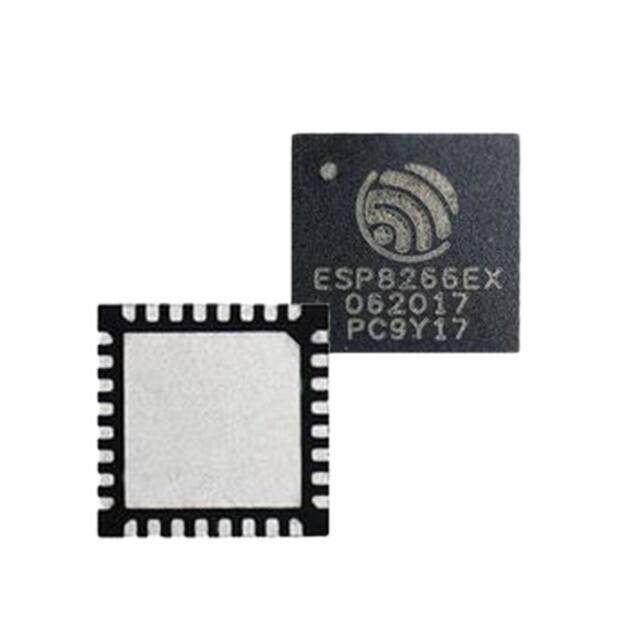

ESP8266EX
RoHS
RoHS compliant
RoHS compliantPackage 32-VFQFN Exposed Pad
Category RF/IF and RFID / RF Transceiver ICs
Description
SMD IC ESP8266EX, QFN32-PIN, 5_5
PDF
/
Buying Options
Total Price: USD $1.41
Unit Price: USD $1.408
≥1 USD $1.408
Inventory: 10188
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
GPIO 8
Current - Transmitting 120mA~170mA
Current - Receiving 50mA~56mA
Serial Interfaces I2C, I2S, SPI, UART
Data Rate (Max) 54Mbps
Sensitivity -91dBm
RF Family/Standard WiFi
Power - Output 20dBm
Protocol 802.11b/g/n
Frequency 2.4GHz
Voltage - Supply 2.5V~3.6V
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type TxRx + MCU
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Published 2015
Packaging Tape & Reel (TR)
Physical
Package / Case 32-VFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 4 Weeks
