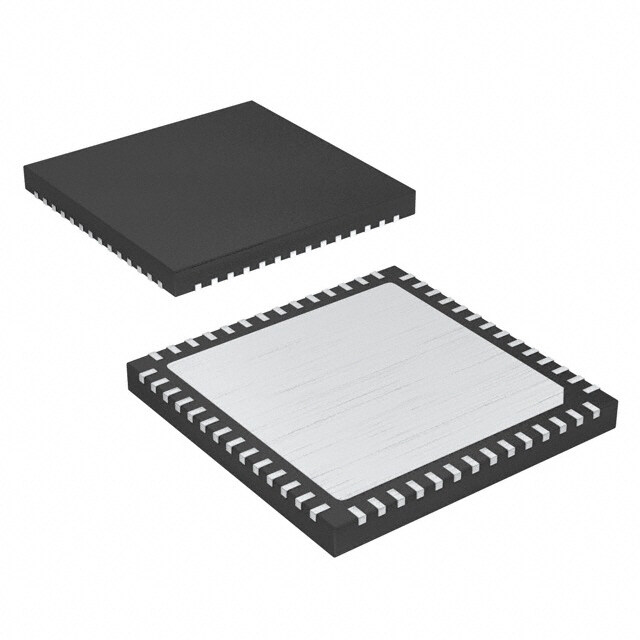

DA14582-01KA2
RoHS
RoHS compliant
RoHS compliantPackage 56-WFQFN Exposed Pad
Category RF/IF and RFID / RF Transceiver ICs
Description
IC RF TXRX+MCU BLUETOOTH 56WFQFN
PDF
/
Buying Options
Total Price: USD $4.61
Unit Price: USD $4.606966
≥1 USD $4.606966
≥200 USD $1.83806
≥500 USD $1.777667
≥1000 USD $1.74747
Inventory: 4873
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 8mm
Length 8mm
Height Seated (Max) 0.68mm
Technical
GPIO 29
Current - Transmitting 3.4mA
Current - Receiving 3.7mA
Serial Interfaces I2C, SPI, UART
Sensitivity -93dBm
RF Family/Standard Bluetooth
Power - Output 0dBm
Protocol Bluetooth v4.2
RAM Size 50kB
Memory Size 32kB OTP 84kB ROM 50kB SRAM
JESD-30 Code S-XQCC-N56
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 2.4GHz
Terminal Pitch 0.5mm
Supply Voltage 1V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position QUAD
Voltage - Supply 1.8V
HTS Code 8542.39.00.01
Type TxRx + MCU
Number of Terminations 56
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -20°C~60°C
Physical
Surface Mount YES
Package / Case 56-WFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
