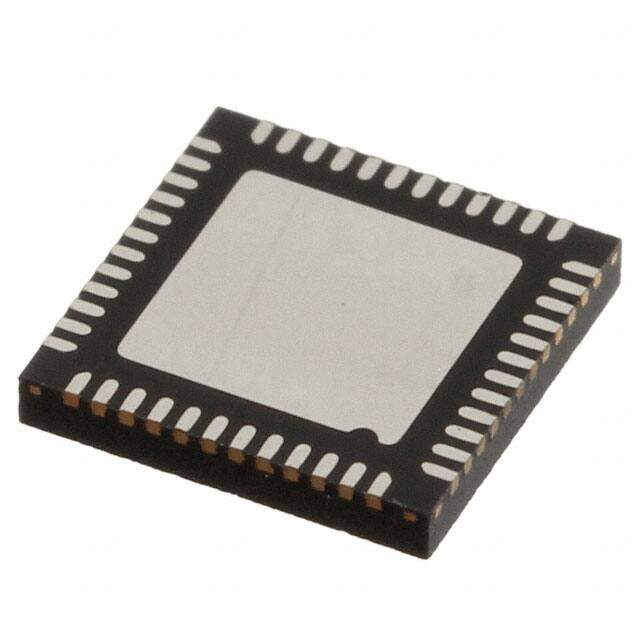

DW1000-I-TR13
RoHS
RoHS compliant
RoHS compliantPackage 48-VFQFN Exposed Pad
Category RF/IF and RFID / RF Transceiver ICs
Description
IC RF TXRX 802.15.4 48-QFN
PDF
/
Buying Options
Total Price: USD $9.4
Unit Price: USD $9.3974
≥1 USD $9.3974
≥10 USD $7.7102
≥100 USD $7.46985
≥500 USD $7.22855
≥1000 USD $6.9882
Inventory: 19304
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Modulation BPM, BPSK
Current - Transmitting 31mA
Current - Receiving 64mA
Serial Interfaces SPI
Data Rate (Max) 6.8Mbps
RF Family/Standard 802.15.4
Power - Output -10dBm
Protocol IR-UWB
Interface SPI
Frequency 3.5GHz~6.5GHz
Voltage - Supply 2.8V~3.6V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type TxRx Only
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Supplier Device Package 48-QFN (6x6)
Package / Case 48-VFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
