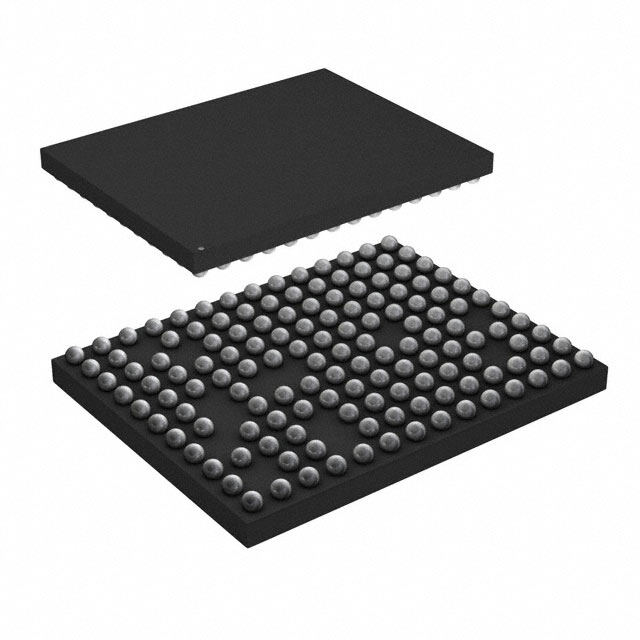

CYW43340XKUBG
RoHS
RoHS compliant
RoHS compliantPackage 141-UFBGA, WLBGA
Category RF/IF and RFID / RF Transceiver ICs
Description
IC RF TXRX+MCU BLUTOOTH 141UFBGA
PDF
/
Buying Options
Total Price: USD $13.83
Unit Price: USD $13.82535
≥1 USD $13.82535
≥10 USD $11.34395
≥100 USD $10.9896
≥500 USD $10.6343
≥1000 USD $10.27995
Inventory: 4003
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4.47mm
Length 5.67mm
Height Seated (Max) 0.55mm
Technical
GPIO 8
Modulation 4DQPSK, 8DPSK, GFSK
Current - Transmitting 60mA
Current - Receiving 39mA
Serial Interfaces I2S, SPI, UART
Data Rate (Max) 150Mbps
Sensitivity -99dBm
RF Family/Standard Bluetooth, WiFi
Power - Output 13dBm
Protocol 802.11b/g/n, Bluetooth v4.0
Memory Size 680kB ROM 173kB RAM
JESD-30 Code R-PBGA-B141
Frequency 2.4GHz
Terminal Pitch 0.4mm
Supply Voltage 1.2V
Number of Functions 1
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 2.3V~4.8V
Type TxRx + MCU
Number of Terminations 141
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Packaging Tray
Operating Temperature -30°C~85°C
Physical
Surface Mount YES
Package / Case 141-UFBGA, WLBGA
Mounting Type Surface Mount
