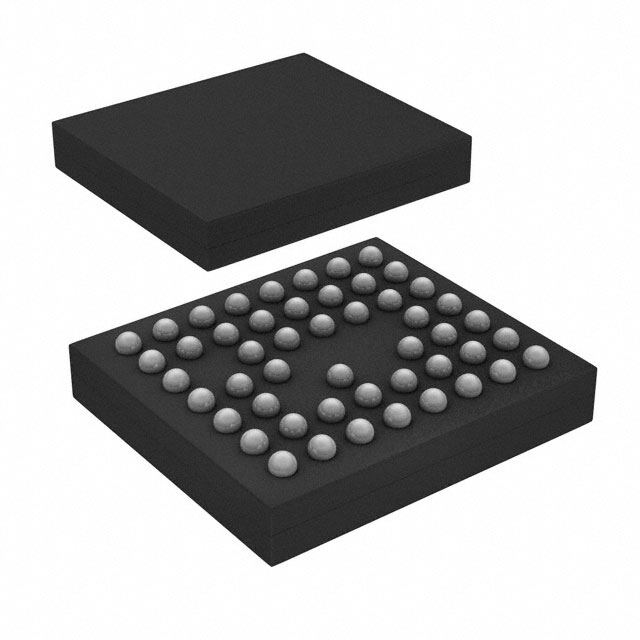

CYW20702A1KWFBG
RoHS
RoHS compliant
RoHS compliantPackage 50-WFBGA
Category RF/IF and RFID / RF Transceiver ICs
Description
IC RF TXRX+MCU BLUETOOTH 50WFBGA
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.69436
≥1 USD $0.69436
≥10 USD $0.65506
≥100 USD $0.61798
≥500 USD $0.583
≥1000 USD $0.55
Inventory: 6000
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4mm
Length 4.5mm
Height Seated (Max) 0.8mm
Technical
GPIO 7
Modulation 4DQPSK, 8DPSK, GFSK
Current - Transmitting 65mA
Current - Receiving 32mA
Serial Interfaces I2C, I2S, SPI, UART, USB
Data Rate (Max) 3Mbps
Sensitivity -92dBm
RF Family/Standard Bluetooth
Power - Output 10dBm
Protocol Bluetooth v4.0 +EDR
JESD-30 Code R-PBGA-B50
Frequency 2.4GHz
Terminal Pitch 0.5mm
Supply Voltage 1.22V
Number of Functions 1
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 2.3V~5.5V
Technology CMOS
Type TxRx + MCU
Number of Terminations 50
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Packaging Tray
Operating Temperature -30°C~85°C
Physical
Surface Mount YES
Package / Case 50-WFBGA
Mounting Type Surface Mount
