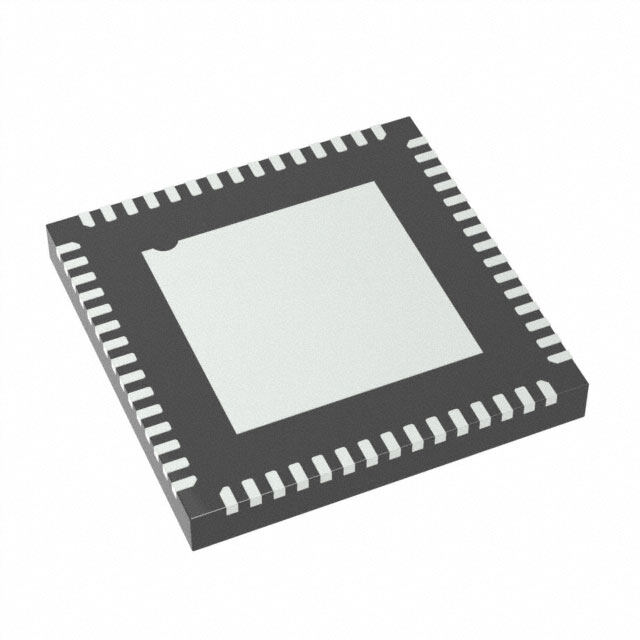

BCM20735PKML1G image
Favorite
BCM20735PKML1G image
Favorite
RoHS
RoHS RoHS compliant
Package 60-VFQFN Exposed Pad
Category RF/IF and RFID / RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 60QFN
PDF
/
Buying Options
Total Price: USD $1.11
Unit Price: USD $1.10675
≥1 USD $1.10675
≥10 USD $0.9082
≥100 USD $0.8797
≥500 USD $0.8512
≥1000 USD $0.8227
Inventory: 19004
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 7mm
Length 7mm
Height Seated (Max) 0.9mm

Technical

GPIO 60
Modulation GFSK
Current - Transmitting 18mA
Current - Receiving 8mA
Serial Interfaces I2C, I2S, SPI, UART
Data Rate (Max) 2Mbps
Sensitivity -94.5dBm
RF Family/Standard Bluetooth
Power - Output 10dBm
Protocol Bluetooth v4.2
Frequency 2.4GHz
Reach Compliance Code unknown
Terminal Pitch 0.4mm
Supply Voltage 1.2V
Number of Functions 1
Terminal Form NO LEAD
Terminal Position QUAD
Voltage - Supply 3.3V
Technology CMOS
HTS Code 8542.31.00.01
Type TxRx + MCU
ECCN Code 5A992.C
Number of Terminations 60
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Published 2016
Packaging Tray
Operating Temperature -30°C~85°C

Physical

Surface Mount YES
Package / Case 60-VFQFN Exposed Pad
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 3 Weeks
