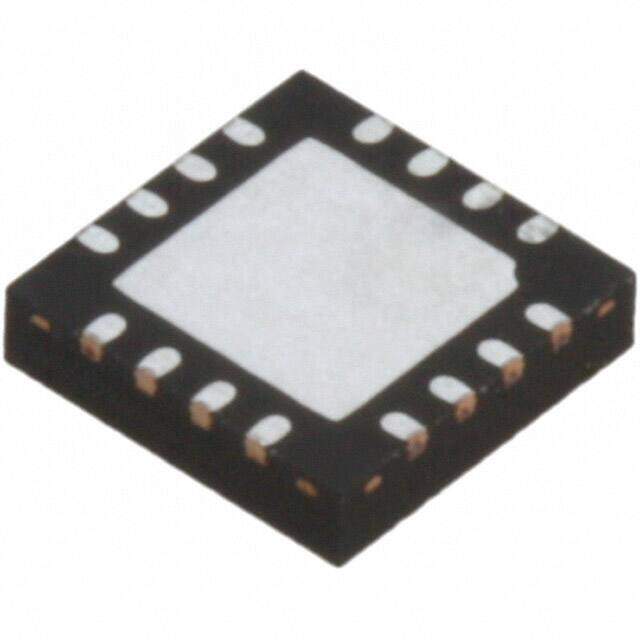

AS196-307LF
RoHS
RoHS compliant
RoHS compliantPackage 16-VQFN Exposed Pad
Category RF/IF and RFID / RF Switches
Description
IC SW SPDT LF-6GHZ GAAS 16LPCC
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.14985
≥1 USD $2.14985
≥10 USD $1.76415
≥100 USD $1.70905
≥500 USD $1.65395
≥1000 USD $1.59885
Inventory: 38805
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
1dB Compression Point 21 dBm
On Time-Nom 0.05 μs
IIP3 46dBm
P1dB 27dBm
Input Power-Max (CW) 30dBm
RF Type GSM, ISM, PCS, WCDMA
Insertion Loss (dB) 1.6 dB
VSWR-Max 1.6
Isolation 30dB
Insertion Loss 1.6dB
Frequency Range 300kHz~6GHz
Turn-Off Delay Time 50 ns
Topology Absorptive
Turn On Delay Time 50 ns
Impedance 50Ohm
Circuit SPDT
Operating Supply Voltage 5V
Frequency 6GHz
Construction COMPONENT
Number of Functions 1
Voltage - Supply 2.6V~5V
Technology GAAS
Subcategory RF/Microwave Switches
Terminal Finish Matte Tin (Sn)
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 16
Mounting Feature SURFACE MOUNT
Surface Mount YES
Package / Case 16-VQFN Exposed Pad
