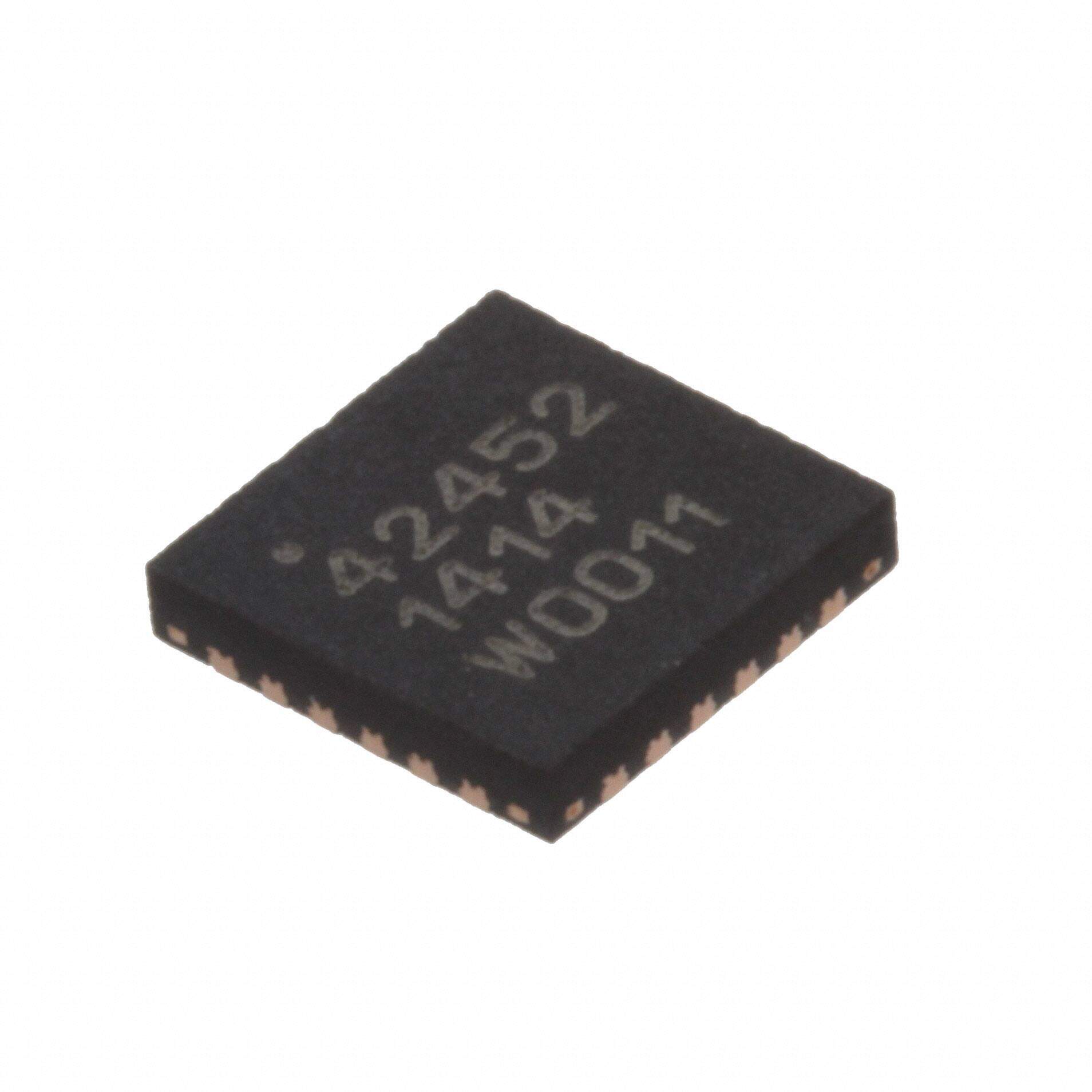

PE42452A-Z
RoHS
RoHS compliant
RoHS compliantPackage 24-WFQFN Exposed Pad
Category RF/IF and RFID / RF Switches
Description
IC RF SWITCH SP5T 4GHZ 24QFN
PDF
/
Buying Options
Total Price: USD $5.9
Unit Price: USD $5.896
≥1 USD $5.896
≥10 USD $4.1184
≥100 USD $2.745609
Inventory: 5501
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
IIP3 57dBm
RF Type General Purpose
Isolation 45dB
Insertion Loss 1.6dB
Frequency Range 450MHz~4GHz
Topology Absorptive
Throw Configuration SP5T
Impedance 50Ohm
Test Frequency 4GHz
Circuit SP5T
Voltage - Supply 2.3V~5.5V
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Resistance 50Ohm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series UltraCMOS?, HaRP?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Supplier Device Package 24-QFN (4x4)
Package / Case 24-WFQFN Exposed Pad
Supply Chain
Factory Lead Time 16 Weeks
