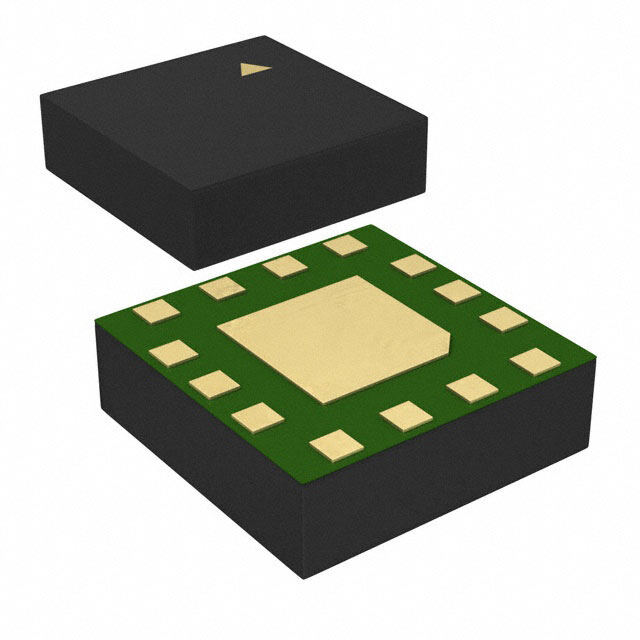

BGS18MN14E6327XTSA1
RoHS
RoHS compliant
RoHS compliantPackage 14-WFQFN Exposed Pad
Category RF/IF and RFID / RF Switches
Description
IC SWITCH RF 14TSNP
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.3696
≥1 USD $0.3696
Inventory: 201237
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 2mm
Length 2mm
Height Seated (Max) 0.77mm
Technical
RF Type LTE, W-CDMA
Insertion Loss (dB) 0.35 dB
Isolation 29dB
Telecom IC Type TELECOM CIRCUIT
Insertion Loss 0.8dB
Frequency Range 100MHz~2.7GHz
Halogen Free Halogen Free
Impedance 50Ohm
Test Frequency 2GHz
Circuit SP8T
JESD-30 Code S-PQCC-N14
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 2.7GHz
Terminal Pitch 0.5mm
Supply Voltage 3.5V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position QUAD
Voltage - Supply 2.5V~5.5V
Technology CMOS
HTS Code 8542.39.00.01
Terminal Finish Tin (Sn)
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2014
Packaging Tape & Reel (TR)
Operating Temperature -30°C~85°C
Physical
Surface Mount YES
Package / Case 14-WFQFN Exposed Pad
Supply Chain
Factory Lead Time 10 Weeks
