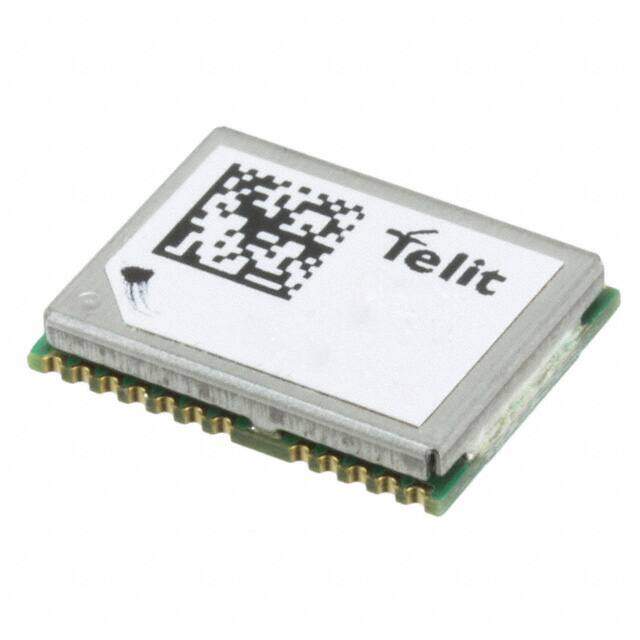

JN3-B3A3-LR
RoHS
RoHS compliant
RoHS compliantPackage 24-SMD Module
Category RF/IF and RFID / RF Receivers
Description
RF RCVR GPS 1575.42MHZ MODULE
PDF
/
Inventory: 8333
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case 24-SMD Module
Surface Mount NO
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2012
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 24
Applications GPS Receiver
HTS Code 8542.39.00.01
Voltage - Supply 2.85V~3.6V
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 1.1mm
Frequency 1575.42MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-N24
Memory Size 16MB Flash
Data Interface Pads for Pins
Telecom IC Type TELECOM CIRCUIT
Sensitivity -163dBm
Data Rate (Max) 9.6kbps
Current - Receiving 32mA
Modulation or Protocol GPS
Dimensions
Height Seated (Max) 2.5mm
Length 16mm
Width 12.2mm
Compliance
RoHS Status RoHS Compliant
