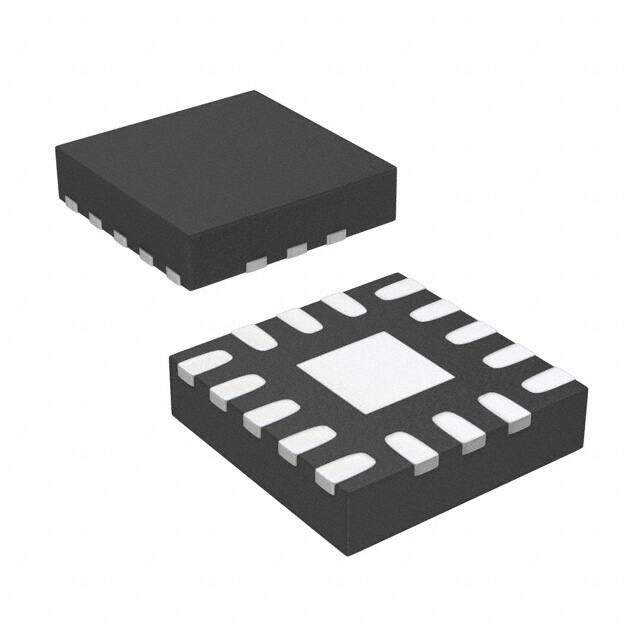

TRF3702IRHCR
RoHS
RoHS compliant
RoHS compliantPackage 16-VQFN Exposed Pad
Category RF/IF and RFID / RF Modulators
Description
Tape & Reel (TR) TRF3702 Modulator RF AND BASEBAND CIRCUIT RF Modulator IC 4mm -155dBm/Hz 5.5V -2.5dBm
PDF
/
Buying Options
Total Price: USD $15.07
Unit Price: USD $15.0689
≥1 USD $15.0689
≥10 USD $12.36425
≥100 USD $11.97855
≥500 USD $11.5919
≥1000 USD $11.20525
Inventory: 1363
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 4mm
Length 4mm
Height Seated (Max) 1mm
Technical
Noise Floor -155dBm/Hz
LO Frequency 1.5GHz~2.5GHz
RF Frequency 1.5GHz~2.5GHz
P1dB 7dBm
Telecom IC Type RF AND BASEBAND CIRCUIT
Output Power -2.5dBm
Supply Current-Max 0.17mA
Operating Supply Current 170mA
Test Frequency 1.842GHz
Temperature Grade INDUSTRIAL
Power Supplies 5V
Operating Supply Voltage 5.5V
Function Modulator
Base Part Number TRF3702
Frequency 1.5GHz
Terminal Pitch 0.8mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Voltage - Supply 4.5V~5.5V
Subcategory Other Telecom ICs
HTS Code 8542.39.00.01
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Terminations 16
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
JESD-609 Code e4
Packaging Tape & Reel (TR)
Physical
Weight 41.503702mg
Number of Pins 16
Surface Mount YES
Package / Case 16-VQFN Exposed Pad
