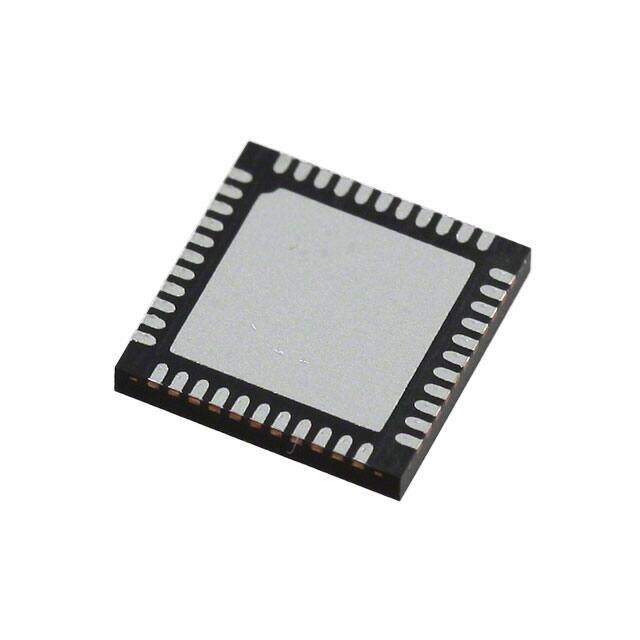

STW82101B image
Favorite
STW82101B image
Favorite
RoHS
RoHS RoHS compliant
Package 44-VFQFN Exposed Pad
Category RF/IF and RFID / RF Mixers
Description IC MIXER 695-960MHZ DWN CONV
PDF
/
Inventory: 7318
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Width 7mm
Length 7mm

Technical

Number of Mixers 1
Noise Figure 9.5dB
Secondary Attributes Down Converter
RF Type General Purpose
Gain 9dB
Operating Supply Current 160mA
Analog IC - Other Type PLL FREQUENCY SYNTHESIZER
Temperature Grade INDUSTRIAL
Supply Voltage-Max (Vsup) 3.45V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Pin Count 44
Base Part Number STW82101
Frequency 695MHz~960MHz
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Voltage - Supply 3.3V~5V
Technology BICMOS
Terminal Finish MATTE TIN
ECCN Code EAR99
Number of Terminations 44
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Packaging Tray

Physical

Number of Pins 44
Surface Mount YES
Package / Case 44-VFQFN Exposed Pad
Mounting Type Surface Mount

Supply Chain

Lifecycle Status NRND (Last Updated: 8 months ago)
Factory Lead Time 16 Weeks
