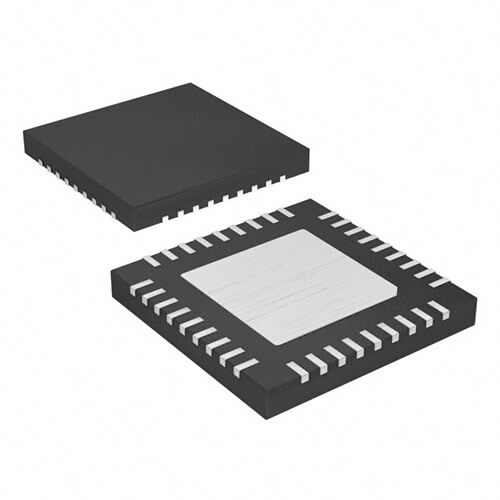

MAX9981ETX+D image
Favorite
MAX9981ETX+D image
Favorite

MAX9981ETX+D

Maxim Integrated
RoHS
/
Package QFN
Category RF/IF and RFID / RF Mixers
Description Up/Down Conv Mixer 5V 915MHz 36-Pin TQFN EP
PDF
/
Inventory: 3865
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Package / Case QFN
Surface Mount YES
Number of Pins 36

Technical

JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1
Number of Terminations 36
Terminal Finish Tin (Sn)
HTS Code 8542.39.00.01
Technology BICMOS
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.5mm
Frequency 915MHz
Pin Count 36
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Operating Supply Voltage 5V
Temperature Grade INDUSTRIAL
Power Dissipation-Max 2.2W
Operating Supply Current 325mA
Nominal Supply Current 291mA
Gain 2.7 dB
Telecom IC Type RF AND BASEBAND CIRCUIT
Noise Figure 10.8 dB

Dimensions

Height Seated (Max) 0.8mm
Length 6mm
Width 6mm
Thickness 900μm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
