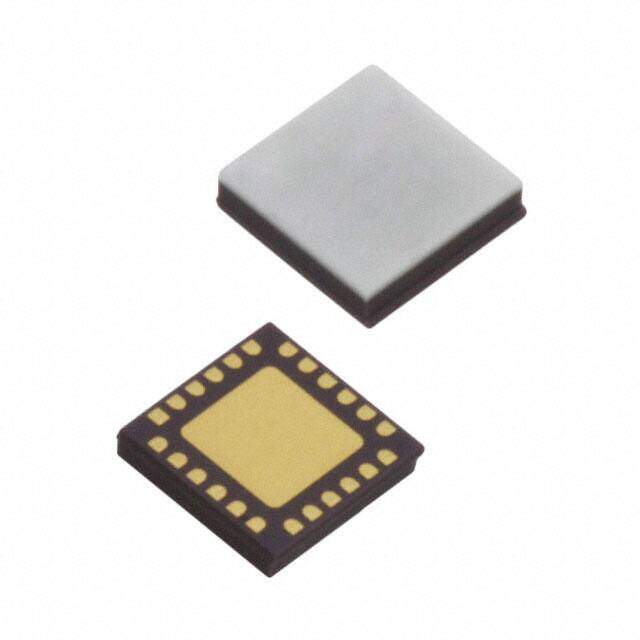

RFVC1802SQ
RoHS
/
Package 24-TFQFN Exposed Pad
Category RF/IF and RFID / RF Misc ICs and Modules
Description
IC MMIC VCO BUF AMP 24-QFN
PDF
/
Inventory: 2584
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 24-TFQFN Exposed Pad
Surface Mount YES
Technical
Packaging Bulk
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 24
ECCN Code 5A991.G
Terminal Finish Gold (Au)
Additional Feature BAG
HTS Code 8517.62.00.50
Subcategory Other Oscillators
Supply Voltage 5V
Frequency 4GHz~8GHz
Function VCO, Buffer Amp
Qualification Status Not Qualified
Operating Temperature (Max) 85°C
Physical Dimension 4.0mm x 4.0mm x 1.1mm
Operating Temperature (Min) -40°C
Operating Frequency 8000MHz
Supply Voltage-Max (Vsup) 5.25V
Power Supplies 5V
Supply Voltage-Min (Vsup) 4.75V
Oscillator Type VOLTAGE CONTROLLED OSCILLATOR
Supply Current-Max 70mA
Output Power 4dBm
Logic Function Buffer
Control Voltage-Max 18V
RF Type General Purpose
Phase Noise -74 dBc/Hz
Modulation Sensitivity 270 MHz/V
Compliance
RoHS Status RoHS Compliant
