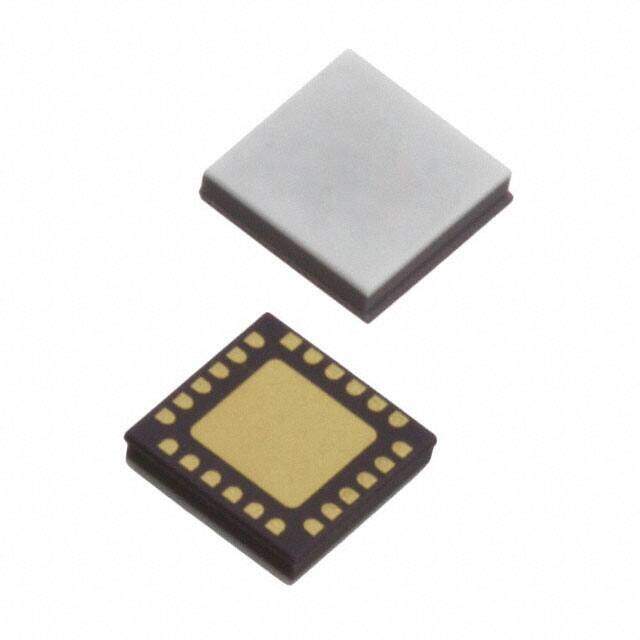

RFVC1801SQ image
Favorite
RFVC1801SQ image
Favorite

RFVC1801SQ

RFMD
RoHS
/
Package 24-TFQFN Exposed Pad
Category RF/IF and RFID / RF Misc ICs and Modules
Description IC MMIC VCO BUF AMP 24-QFN
PDF
/
Inventory: 3711
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Technical

Modulation Sensitivity 390 MHz/V
Phase Noise -72 dBc/Hz
RF Type General Purpose
Control Voltage-Max 18V
Logic Function Buffer
Output Power 3dBm
Supply Current-Max 70mA
Oscillator Type VOLTAGE CONTROLLED OSCILLATOR
Supply Voltage-Min (Vsup) 4.75V
Power Supplies 5V
Supply Voltage-Max (Vsup) 5.25V
Operating Frequency 10000MHz
Operating Temperature (Min) -40°C
Physical Dimension 4.0mm x 4.0mm x 1.1mm
Operating Temperature (Max) 85°C
Qualification Status Not Qualified
Function VCO, Buffer Amp
Frequency 5GHz~10GHz
Supply Voltage 5V
Subcategory Other Oscillators
HTS Code 8517.62.00.50
Additional Feature BAG
Terminal Finish Gold (Au)
ECCN Code 5A991.G
Number of Terminations 24
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Packaging Bulk

Physical

Surface Mount YES
Package / Case 24-TFQFN Exposed Pad
Mounting Type Surface Mount
