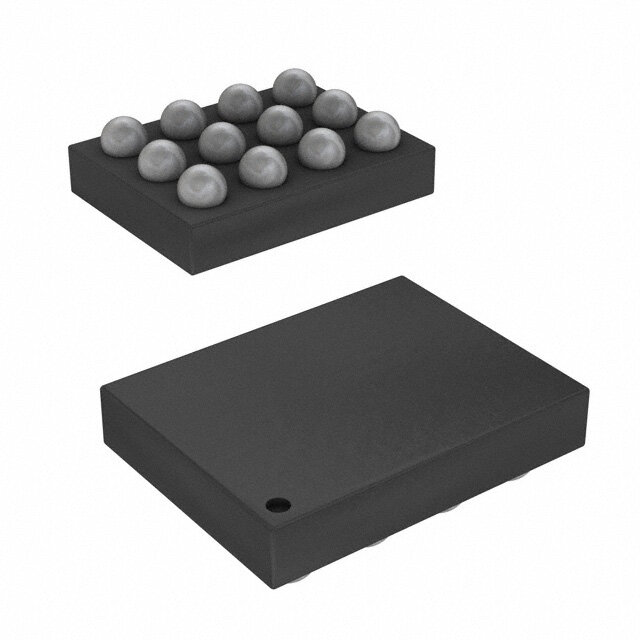

TCC-303A-RT image
Favorite
TCC-303A-RT image
Favorite

TCC-303A-RT

ON Semiconductor
RoHS
RoHS RoHS compliant
Package 12-WFBGA, WLCSP
Category RF/IF and RFID / RF Misc ICs and Modules
Description IC PTIC CONTROLLER 12WLCSP
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.941742
≥1 USD $0.941742
≥10 USD $0.365307
≥100 USD $0.352806
≥500 USD $0.345861
Inventory: 1157
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Width 1.025mm
Length 1.376mm
Height Seated (Max) 0.68mm

Technical

RF Type General Purpose
Analog IC - Other Type ANALOG CIRCUIT
Supply Voltage-Min (Vsup) 2.3V
Temperature Grade OTHER
Supply Voltage-Max (Vsup) 5.5V
Operating Temperature (Min) -30°C
Operating Temperature (Max) 85°C
Function Analog Tunable Capacitor
JESD-30 Code R-PBGA-B12
Terminal Pitch 0.35mm
Supply Voltage 3.3V
Terminal Form BALL
Terminal Position BOTTOM
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2017
Packaging Tape & Reel (TR)

Physical

Surface Mount YES
Package / Case 12-WFBGA, WLCSP
Mounting Type Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 20 Weeks
