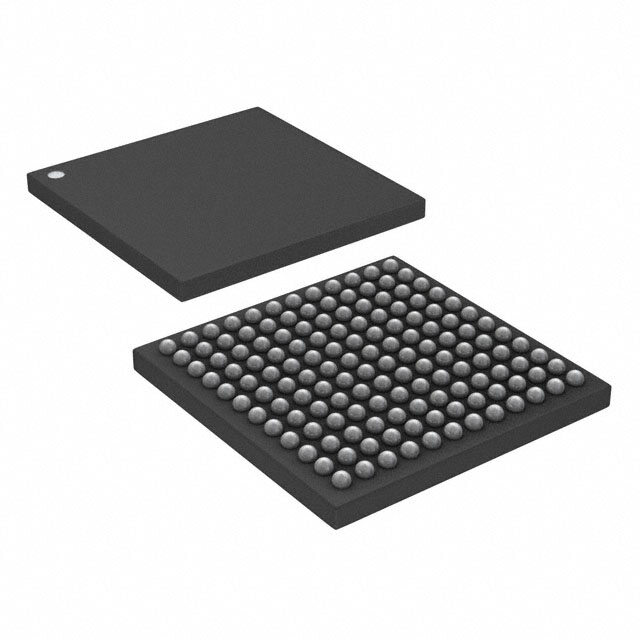

MAX5855EXE+
RoHS
RoHS compliant
RoHS compliantPackage 144-LFBGA, FCCSPBGA
Category RF/IF and RFID / RF Misc ICs and Modules
Description
IC DAC RF 4.9GSPS 144FCCSP
PDF
/
Buying Options
Total Price: USD $169.76
Unit Price: USD $169.756534
≥1 USD $169.756534
≥10 USD $160.147672
≥100 USD $151.082705
≥500 USD $142.530862
≥1000 USD $134.463066
Inventory: 1454
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 10mm
Length 10mm
Height Seated (Max) 1.265mm
Technical
Analog Output Voltage-Min 1.4V
Analog Output Voltage-Max 2.2V
Input Format SERIAL
RF Type General Purpose
Input Bit Code OFFSET BINARY
Settling Time 0.02 μs
Converter Type D/A CONVERTER
Supply Current-Max 270mA
Number of Bits 16
Temperature Grade INDUSTRIAL
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Function VCO/PLL Synthesizer
JESD-30 Code S-PBGA-B144
Base Part Number MAX5855
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 0Hz~2.45GHz
Reach Compliance Code compliant
Terminal Pitch 0.8mm
Supply Voltage 1V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Number of Terminations 144
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Packaging Tray
Physical
Surface Mount YES
Package / Case 144-LFBGA, FCCSPBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
