DCPL-WB-00D3
RoHS
RoHS compliant

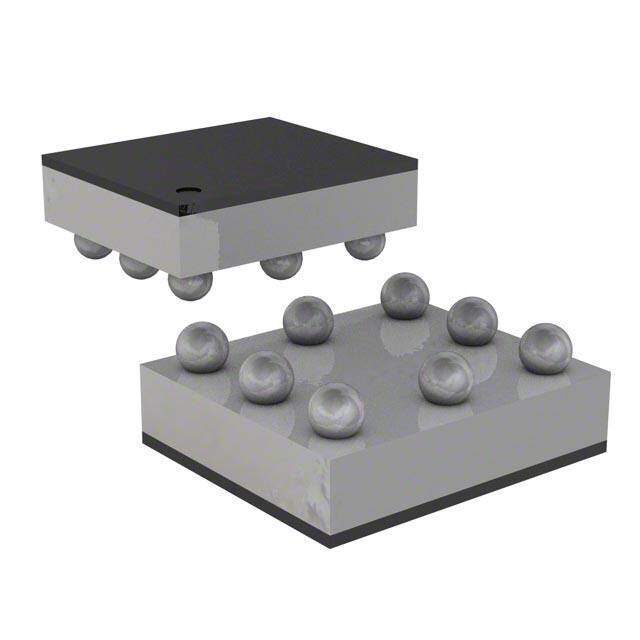

RoHS compliantPackage 8-UFBGA, FCBGA
Category RF/IF and RFID / RF Directional Coupler
Description
IC DIRECTIONAL CPLR FLIPCHIP
PDF
/
Buying Options
Total Price: USD $4.42
Unit Price: USD $4.4194
≥1 USD $4.4194
≥10 USD $3.62615
≥100 USD $3.5131
≥500 USD $3.40005
≥1000 USD $3.28605
Inventory: 1537
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Coupling Factor 37dB
Coupler Type Dual Band, Dual Path
Return Loss 15dB
Input Power-Max (CW) 35dBm
Insertion Loss (dB) 0.2 dB
RF/Microwave Device Type DIRECTIONAL COUPLER
Evaluation Kit Yes
Impedance 50Ohm
Base Part Number DCPL-WB
Frequency 824MHz~2.17GHz
Construction COMPONENT
Applications W-CDMA
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tape & Reel (TR)
Physical
Number of Pins 8
Package / Case 8-UFBGA, FCBGA
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
