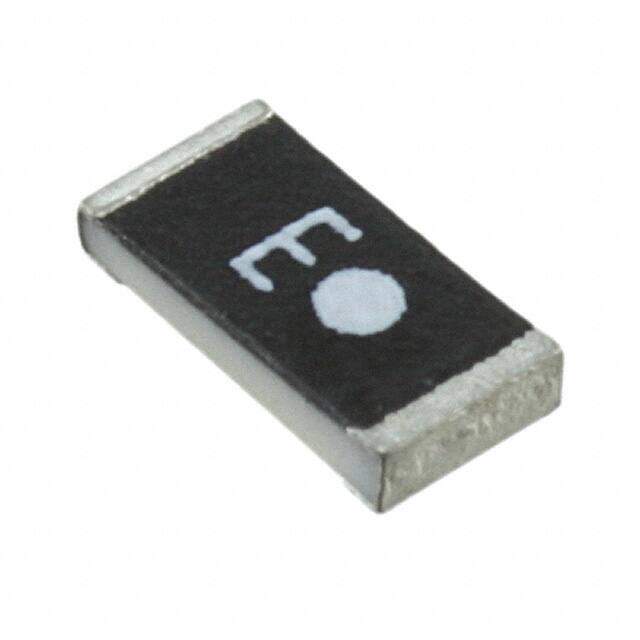

ANT3216A063R2400A image
Favorite
ANT3216A063R2400A image
Favorite

ANT3216A063R2400A

Yageo
RoHS
RoHS RoHS compliant
Package Ceramic
Category RF/IF and RFID / RF Antennas
Description PIFA CHIP ANTENNA 2.4GHZ
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3256
≥1 USD $0.3256
≥10 USD $0.26048
≥100 USD $0.238656
≥500 USD $0.177496
≥1000 USD $0.160829
≥3000 USD $0.133109
Inventory: 11907
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Ceramic

Technical

Packaging Tape & Reel (TR)
Published 2014
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Applications Bluetooth, WLAN, Zigbee?
Power Rating 1W
Construction COMPONENT
Frequency 2.5GHz
Polarization LINEAR
Impedance 50Ohm
Bandwidth 230MHz
Gain 1.69dBi
Frequency Range 2.335GHz~2.565GHz
RF/Microwave Device Type ANTENNA-OTHER
RF Family/Standard 802.15.4, Bluetooth, WiFi
Antenna Type Chip
Number of Bands 1
Frequency Group UHF 2GHz~3GHz
Frequency (Center/Band) 2.4GHz
Return Loss -10dB
Omnidirectional YES

Dimensions

Height 558.8μm
Length 3.05mm
Width 1.55mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
