2065600050
RoHS
/
Package /
Category RF/IF and RFID / RF Antennas
Description

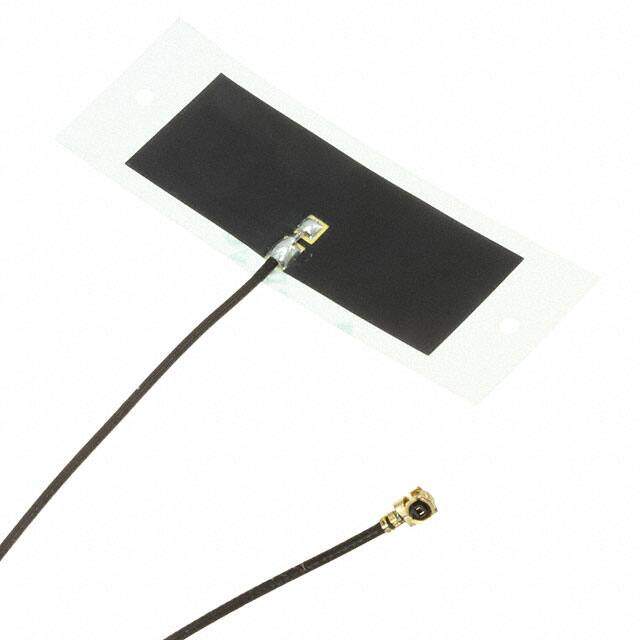

RF ANT 1.561/1.575GHZ FLAT 50MM
PDF
/
Buying Options
Total Price: USD $2.71
Unit Price: USD $2.7104
≥1 USD $2.7104
≥10 USD $2.43584
≥100 USD $2.303136
≥500 USD $1.996104
≥1000 USD $1.893725
≥3000 USD $1.699227
Inventory: 1157
Minimum: 1
-
+
Technical Details
Dimensions
Height (Max) 0.004 0.10mm
Technical
Return Loss -8dB
Frequency (Center/Band) 1.561GHz 1.575GHz 1.602GHz
Frequency Group Wide B
Number of Bands 3
Antenna Type Flat Patch
RF Family/Standard Navigation
Frequency Range 1.558GHz~1.61GHz
Gain 1.1dBi, 1.2dBi, 1.5dBi
Applications Beidou, GLONASS, GNSS, GPS
Termination U.FL (UMCC), IPEX MHF1
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Cable - 50mm
Series 206560
Physical
Mounting Type Adhesive
Supply Chain
Factory Lead Time 11 Weeks
