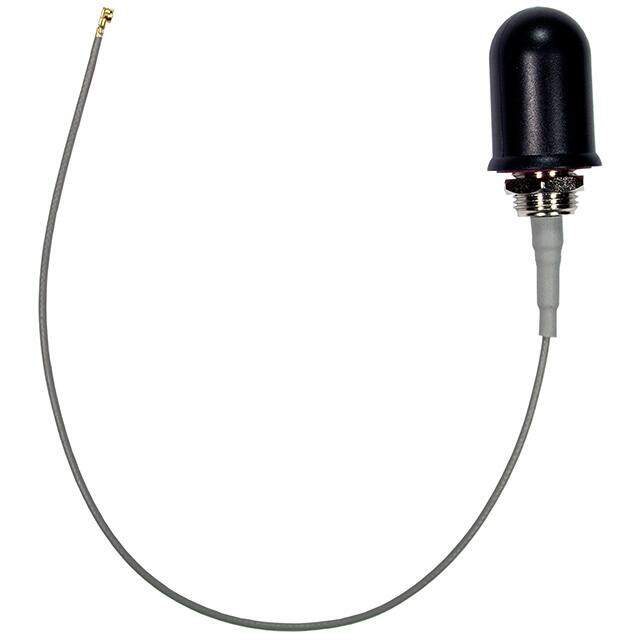

ANT-DB1-WRT-MON-UFL
RoHS
RoHS compliant
RoHS compliantPackage /
Category RF/IF and RFID / RF Antennas
Description
RF ANT 2.45/5.8GHZ DOME PANEL MT
PDF
/
Buying Options
Total Price: USD $13.49
Unit Price: USD $13.4904
≥1 USD $13.4904
≥10 USD $12.76
≥100 USD $12.3904
≥500 USD $12.221
Inventory: 281
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 1.063 27.00mm
Technical
Frequency (Center/Band) 2.4GHz 2.5GHz 5.7GHz 5.8GHz
Frequency Group UHF 2GHz~3GHz SHF f > 4GHz
Number of Bands 2
Antenna Type Dome
RF Family/Standard WiFi
Frequency Range 2.4GHz~2.5GHz 5.725GHz~5.875GHz
Gain 1.0dBi, 2.8dBi
Power - Max 5W
Applications Wi-Fi
Termination U.FL (UMCC), IPEX MHF1
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Cable - 216mm
Series WRT-MON
Physical
Mounting Type Panel Mount
Supply Chain
Factory Lead Time 6 Weeks
