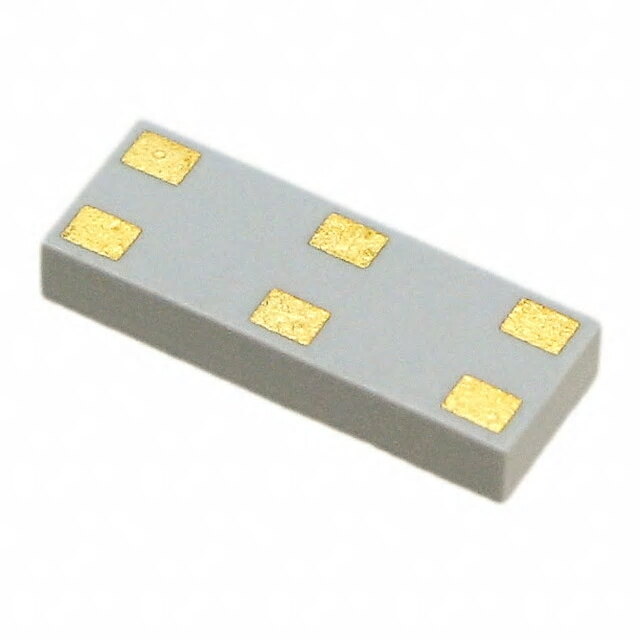

M830110
RoHS
/
Package /
Category RF/IF and RFID / RF Antennas
Description
RF ANT 1.561GHZ/1.575GHZ CHIP
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.14795
≥1 USD $2.14795
≥10 USD $1.7632
≥100 USD $1.7081
≥500 USD $1.653
≥1000 USD $1.5979
Inventory: 4294
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Technical
Packaging Tape & Reel (TR)
Published 2011
Series Savvi?
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Applications Beidou, GLONASS, GPS
Max Power Dissipation 500mW
Reach Compliance Code unknown
Polarization LINEAR
Gain 1.78dBi
Frequency Range 1.561GHz~1.602GHz
RF/Microwave Device Type GPS ANTENNA
RF Family/Standard Navigation
Antenna Type Chip
VSWR 1.7
Number of Bands 1
Frequency Group UHF 1GHz~2GHz
Frequency (Center/Band) 1.561GHz 1.575GHz 1.602GHz
Characteristic Impedance 50Ohm
Omnidirectional NO
Dimensions
Height 1.2954mm
Compliance
RoHS Status RoHS Compliant
