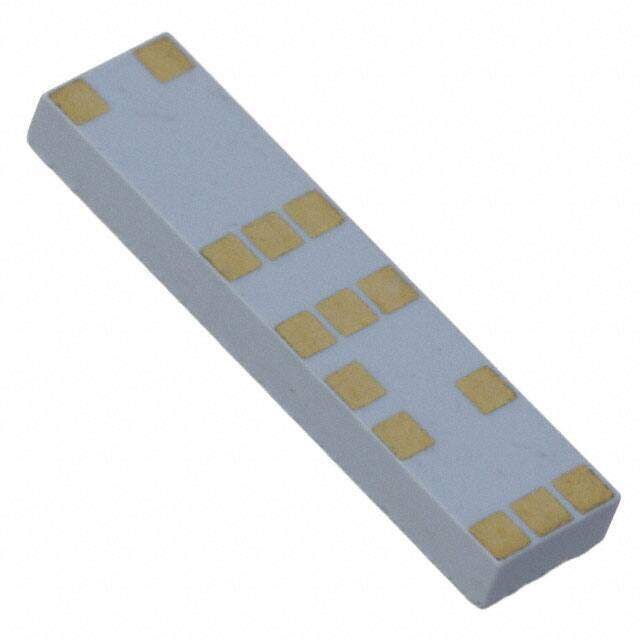

M232110
RoHS
/
Package /
Category RF/IF and RFID / RF Antennas
Description
BLUETOOTH/GPS ANTENNA 12X3X1MM
PDF
/
Inventory: 4753
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.051 1.30mm
Height 1.2954mm
Technical
Frequency (Center/Band) 1.575GHz 2.4GHz
Frequency Group UHF 1GHz~2GHz UHF 2GHz~3GHz
Number of Bands 2
VSWR 2, 2.6
Antenna Type Chip
RF Family/Standard 802.15.4, Bluetooth, Navigation, WiFi
Frequency Range 1.575GHz 2.4GHz~2.5GHz
Gain 1.98dBi, 1.88dBi
Power - Max 500mW
Max Power Dissipation 500mW
Applications Bluetooth, GPS, Wi-Fi, WLAN, Zigbee?
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series Savvi?
Published 2011
Packaging Tape & Reel (TR)
Physical
Mounting Type Surface Mount
Mount Surface Mount
